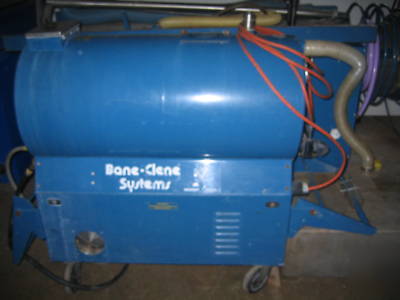

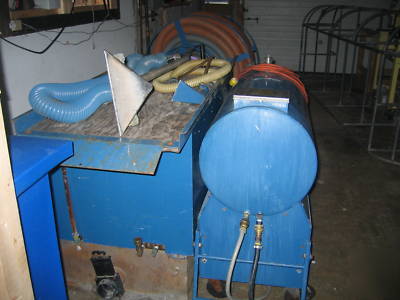

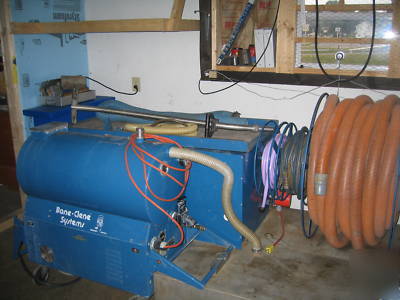

Bane carpet cleaner cleaning
This machine is large and heavy so I would perfer local pickup I will arrange to have help to load onto a trailer or into a van
I found some information on the bane website keep in mind this information is for a new machine and is for your referance only
The Para-Mount carpet cleaning equipment is the ultimate one-man cleaning system the result of years of development and refinement. It is designed as a truck-mounted operation with enough water capacity to work all day and take away the waste water, which eliminates the illegal dumping of dirty water onto streets. It has the lowest maintenance time and cost in the industry. The low profile design distributes weight evenly in the van. Of special note are the deluxe features, consisting of electric automatic hose reels with power-assisted loading and unloading, and the stainless steel recovery tank.
The Para-Mount provides the same fast drying time, positive moisture control, chemical blending system, and quick setup time both truck-mounted and portable as are found in the other Bane-Clene systems.
Designed for installation into a 3/4 ton van. 1-ton is recommended.
Positive displacement - HD cast iron housing.
HD lobe-type impellers for long life.
Greater vacuum than previous unit.
Easy access for oil and grease maintenance.
Intake filter: Stainless steel.
Stainless steel vacuum relief valve.
Tank access door for cleaning and maintenance.
Large - HD construction - baffled - steel silencer with clean-out ports.
Allows for VERY quiet operation indoors.
Exhaust disconnect for maintenance.
1500 watt immersion type heater with thermostat and indicator light.
Stainless steel heat exchange housing 400 PSI rated with easy access clean-out hardware.
Insulated heater housing with high pressure relief valve.
Lighted indicator on/off switch.
HD, 14 Gauge,Stainless Steel, Mounts to Recovery tank with special Bolted Brackets, solution / detergent dilution gauge on tank.
120 Gal. w/3" Capped Fill Port.
Tank immersion heater with 25 ft cord with holding strap and 20 ampere heavy-duty plug and receptacle.
All Stainless Steel Heat Exchange System. System uses otherwise wasted engine heat to keep water temperature at safe level. Truck engine heats water while driving at no additional cost to you.
1" FSK Fiberglass Insulation, Protected by Metal Tank Cover. Maintains water temperature.
Temperature, Sight Gallonage Indicator for accurate temperature control and chemical blending.
All electric - 110V - 60 Hz - Single Phase
1 1/2 HP Vacuum Pump Motor with sealed bearings and manual reset overload protector (no maintenance).
1/2 HP Soluton Pump Motor with sealed bearings and manual reset overload protector (no maintenance).
All wiring 12 GAW - vinyl wrapped - insulated - HD
HD cord restraints on power cords for safety.
2 - HD power switches with watertight covers
Lighted heater switch with watertight cover
Separate vacuum and solution pump ampmeters to monitor equipment performance.
Vacuum: 9 amps at 75% restriction.
Solution pump: 4 amps at 150 PSI
Solution pump with heater: 16 amps.
Electric Steel Reel Assembly (complete with 150' Solution Hose, 150' Vacuum Hose, and Two Power Supply Cords), 12" and 4" Cleaning-Head Package (w/Stainless Steel Guide Handle), Standard Installation, Complete Training Program, Operations Manual, Ramp with Power-Assisted Loading and Unloading.
* Duo-Mount Two-Man Truckmount Carpet Cleaning System
* Mini-Mount Truckmount for Mini-Vans
* Perma-Mount 120 Truckmount
* Perma-Mount 70 Truckmount
Related Articles and Information:
* Compare US to ANY Other Truckmount System
* Equipment Maintenance Tapes
* Installation of Truck-mount Equipment into van
* Lease Application in Adobe Acrobat format - slow loading!
* Troubleshooting Bane-Clene Truckmounts
* Troubleshooting Guide for Bane-Clene Units
* Why Bane-Clene Over All Other "Truck-mounts"?
Catalog No. 7 ......................... $15,995.00
F.O.B. Indianapolis, IN. Non-discountable. Price subject to change without notice.
I will be glad to answer any questions you may have my name is Harry you may also contact me @ ****@sbcglobal.net
