> 0.375" cap. 96" w wysong 838 shear, 36" fopbg
0.375" cap. 96" w wysong 838 shear, 36" fopbg
0.375" Cap. 96" W Wysong 838 SHEAR, 36" FOPBG
0.375" Cap. 96" Width Wysong 838 SHEAR, 36" FOPBG

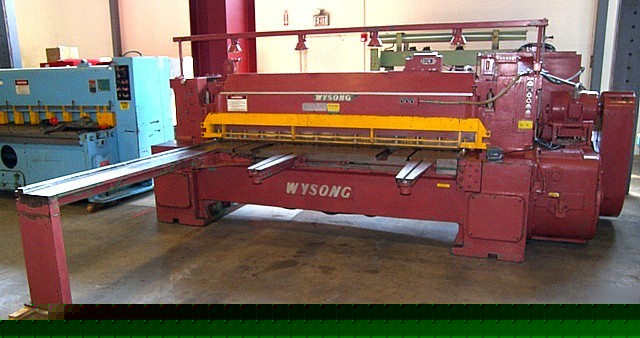

8' x 3/8" WYSONG Mechanical Power Squaring Shear
Model 838, S/N P45-103 (New 1965)
Maximum rake of upper blade 3/8"
Holddown feet centers 7" to 8"
Air actuated mechanical clutch with remote electric
36" Capacity front operated two-speed motorized and
8' Left hand squaring arm with stainless steel scale
(2) T-slots in machine table with dual stainless steel
(1) Set of four-edge shear blades
Light beam gauge for jobs requiring shearing to a scribed
Magnetic sheet suppot (not complete)
Non-repeat unit: permits selection of single stroke or
15 H.P. 3/60/220-440 volt main drive motor with
Approximate Weight: 32,000 Lbs.
Approximate Dimensions (With Gauges): 190" R-L
