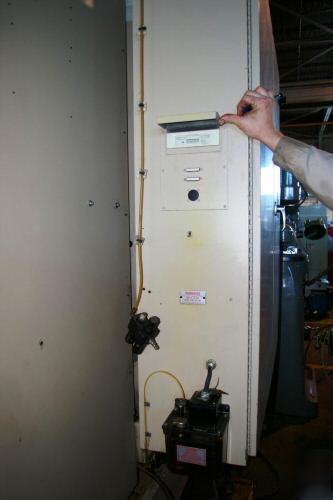

Milltronics partner 10 cnc vertical machining center
MILLTRONICS "PARTNER 10" CNC VERTICAL MACHINING CENTER
MODEL PARTNER 10, SERIES J, MANUFACTURED 1996
RACO Stock Number R014886, S/N 3492
TABLE SIZE, WORKING SURFACE - 24" X 110"
TRAVEL, TABLE, LONGITUDINAL - ( X ) - 100"
TRAVEL, SADDLE, CROSS - ( Y ) - 30"
TRAVEL, HEAD, VERTICAL - ( Z ) - 24"
SPINDLE SPEED RANGE - 0 TO 10,000 RPM
DISTANCE SPINDLE TO TABLE TOP - 2.5" TO 26.5"
MAXIMUM TABLE LOAD - 3,500 LBS.
FEED RATE RANGE - 1 TO 100 IPM
RAPID TRAVERSE - ( X, Y ) - 700 IPM
RAPID TRAVERSE - ( Z ) - 500 IPM
SPINDLE HP - 7.5 HP 230/460/3/60
12 POSITION AUTOMATIC TOOL CHANGER
APPROX WEIGHT: 16000 LBS., APPROX. DIMENSIONS (IN.): 100 X 198 X 115
