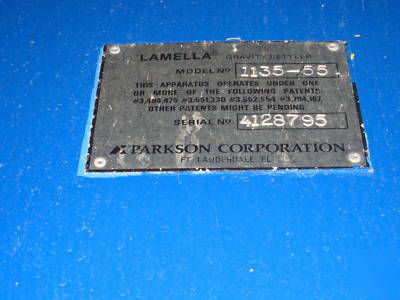

Lamella clarifier gravity settler 1135-55 113555 250 gp

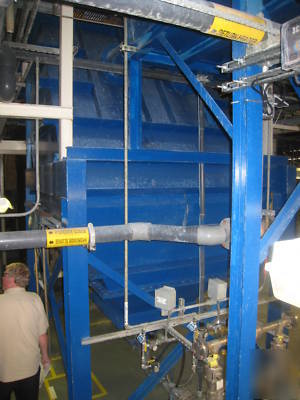

This Lamella clarifier is designed for a hydraulic flow capacity of 250 gallon per minute (GPM).
This unit is complete including a flash tank, pumps, piping, etc.
Unit was very well maintained and presently still installed and will be removed from service around May 21st, 2010.
Price complete unit loaded on your truck $16,500.

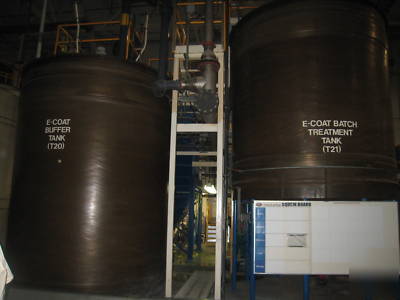

This system also has all of the associated storage tanks like two vertical cone bottom sludge thickener tanks (10' x 16' and 10' x 13'), a 11' x 13' batch treatment tank, 12.5' x 15' buffer tank, and two additional tanks approximately 8' 4" x 12'. All of the tanks are fiberglass.
Price complete including all of the associated tanks etc., loaded on your truck $29,500.
Instruction / specification book available.
Top Part Trough : 92" x 102" x 96" high
Base : 123" x 103" x 100" high
Final Effluent Monitoring Tank : 12' x 8' 4"
Batch Treatment Tank : 153" x 134" 11"skirt 71" cone 16" off ground 5" diameter
Buffer Tank : 15' x 134" flat bottom

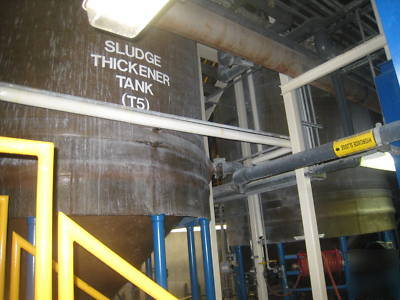

Sludge Thickener Tank T-22 : 10' x 115" 10' Straight Jacket Cone: 64" 16" off ground
Sludge Thickener Tank T-15 : 13' x 10' 62" cone 25" off ground 5" diameter
If you need more photos, I can send them to you. If you have any questions, I will do my best to answer them. Please be as specific as you can.
Our business has been in operation for over 20 years.
