New avanex dwdm transmitter high power w/ test data

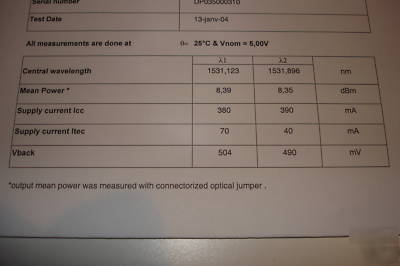

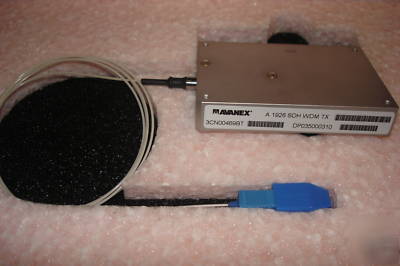

Avanex DWDM Transmitter High Power New w/ Test Data
* Multisource Optical Interfaces
* DWDM Transmitter for Long-Haul 1800 ps/nm (> 90 km)
* From 100 Mbit/s to 2.7 Gbit/s (FEC) bit rate
* Operating at 1.5 m wavelength
* Full performance in operating case temperature from -5 to + 70 C
* High optical output power 10 mW typical
* 2 wavelengths selectable ITU-T G.692; 100 GHz grid ( 0.1nm)
* Clocked or Non-Clocked mode selectable
* Ultra low jitter generation
* Digital laser degraded alarm
* Temperature Deviation Alarm
* Power supplies: + 5 V and + 3.3 V
* Power consumption: 3 W typical
