> New tapeswitch tape switch TS26P ts-26-p sensing edge -

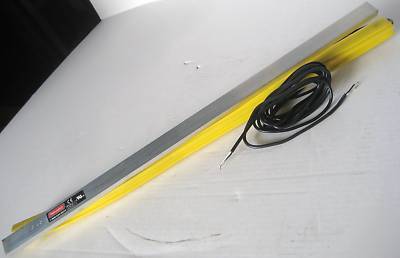

New tapeswitch tape switch TS26P ts-26-p sensing edge -
* Make: Tapeswitch Corporation (Tape switch Corp)
* Model / Part # 1: 186063
* Model / Part # 2: HO165 (H0165)
* Model / Part # 3: TS-26-P (TS26-P) (TS-26P) (TS26P)
* Length: Approximately 25-1/2" (inches)
* Description: Sensor; Sensing Edge
Medium profile, end caps available, Immediate actuation, 3/8 overtravel
TS-26 Sensing Edge is a general-purpose, medium-profile, pressure-sensitive edge. It provides immediate activation with minimal compliance, and about 3/8 of overtravel cushioning after activation. This product is excellent for applications requiring side activation. TS-26 Edges are available in two mounting configurations: snap-in channel-mount (flat or angle) and clamp-mount.
Housings are available in PVC (TS-26P) or Santoprene (TS-26S and TS-26T). Both materials are resistant to water, oil, hydraulic fluids, and coolants. The internal switching elements are rated for 3 million operations at any point. All TS-26 Sensing Edges are supplied with 4-lead, fail-safe wiring and are compatible with Tapeswitch Interface Controllers.
* Low compliance for immediate activation
* 35% overtravel after activation
* Excellent side activation properties
* Standard 4-lead fail-safe wiring
* Pinch protection on machinery edges
* Obstruction detection on automatic doors and gates
* Obstruction detection on medical tables
* Contact sensing on large moving machinery
* Collision sensors on AGVs
* Applications requiring side activation
* Actuation Force: 4.5 lbs (20 N) nominal
* Overtravel: 0.35 (9 mm) after activation
* Recommended Voltage & Current: 28 Vac or Vdc at 1.0 amps max.
* Exterior Housing: PVC for TS-26P, Santoprene TPE for TS-26S and TS-26T
* Environment: -10 to 145 F (-23 to 63 C) for TS-26P, -30 to 170 F (-34 to 77 C) for Santoprene TS-26S and TS-26T
* Mounting Options: Aluminum channel (flat or angle) for TS-26P and TS-26S, PVC channel (flat only) for TS-26P and TS-26S, Clamp mounting for TS-26T only
* End Caps: For TS-26P only (End caps are black)
Tapeswitch's online catalog (with more info) is located at http://tapeswitch.com/info/images/Sensing%20Edges%20Catalog.pdf
