Digital rcd capacitance meter tester multimeter smd B0

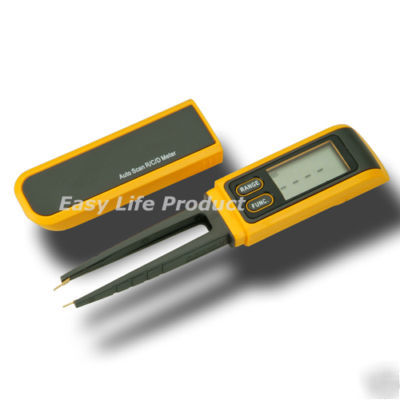

This is an auto-scan Resistance and Capacitance meter (505B) for Surface Mounted Device (SMD) which can quickly and accurately measure small chip components. 505B has Automatic and Manual Scan mode for Resistance and Capacitance, Diode Test, Full-Scale range, continuity check, auto power off, over range and low battery indication.
505B has precision non-magnetic tips are able to pick and reliable contact with SMD components, or measure devices already mounted on board. The probe can also test conventional components with wire leads that are too short to insert into test terminals. Users can easily sort and evaluate loose components and perform on-board measuring and debugging.
505B is an ideal tool for electronic maintenance, industrial and home use.
* Auto-scan mode for Resistance, Capacitance, Diode and Continuity check
* Automatic recognition of Resistance, Capacitance and Diode
* Quickly measure high resistance and capacitance
* High precision Resistance and Capacitance probe
* Precise tips for small-size devices
* With Sampling rate of 3 times per second and auto-save on last measurement
* Over range and Low battery indication
* Large LCD display with Maximum reading up to 5999
* Ideal tool for Surface Mount Devices (SMD)
* Ergonomic design with one-hand operation
Accuracy: (% of reading + number of digits) at 18 to 28 C (64 to 82 F) with relative humidity to 80%.
(5.0 % of reading + 3 digits)
Keep two pins of the capacitance in short before measuring
(1.0 % of reading + 5 digits)
(3.0 % of reading + 5 digits)
Diode Test (Manual and Auto-scan Mode)
Display read approximately forward voltage of diode
Forward DC Current approximately 1 mA
Reversed DC Voltage: approximately 2.8 V
The buzzer generates 2 kHz beep whenever the reading is less than 30
* Operating Temperature: 0 ~ 40 C (< 80% RH, non-condensing)
* Storage Temperature: -10 ~ 60 C (< 70% RH, battery removed)
* Temperature Coefficient: 0.1 x (specified accuracy) / C (< 18 C or > 28 C)
* Maximum Voltage between terminals and earth ground: 50 V DC or 36 V AC rms
* Sampling Rate: 3 times / sec for digital data
* 2 2/3 digits LCD display with maximum reading 2999
* 5 5/6 digits LCD display with maximum reading 5999
* Over Range indication: Display as "OL"
* Auto Power Off: idle for 10 minutes
* Power supply: 2 x 1.5 V Button Cell Batteries (included)
* Dimensions: approx. 185 (L) x 35 (W) x 20 (D) mm (7.28' x 1.38' x 0.79' inch)
* 2 x 1.5 V Button Cell Batteries (pre-installed)
* 2 x 1.5 V Button Cell Batteries (FREE)
* GBP 4.50 per unit to worldwide
