Harig twin angle no.2 compound angle plate machinist

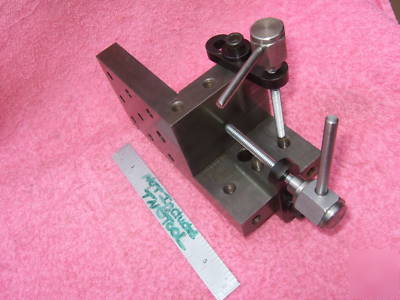

HARIG MFG. TWIN-ANGLE No. 2 (P/N 185-100) USED BY A MOORE MACHINIST REITRED FROM THE MOORE MACHINE HE OPERATED HIS LAST 15 YEARS OF 40+! I ALSO HAVE HIS ORIGINAL "HARIG" RECEIPT FOR THIS TOOL.
Harig's precision holding fixture mounts electrodes in vertical ram of conventional EDM machine and serves as a workholder for wire EDM applications. Also can be used for surface grinding applications. Two sizes available with 2-Vs each to accurately hold workpieces within "tenths." When a multi-purpose work-holding fixture is needed, look no further than the Harig Twin-Angle. Reliability backed by Harig's trademark service.
THESE ARE MADE AND USED TO MAKE EDM ELECTRODES OR INSERTS OR SQUARING UP OPERATIONS ON BLADES AND GRINDING OPERATIONS AS NEEDED. COMPOUND ANGLE PLATE OR BLOCK MEASURES OVERALL 3" WIDE x 3" TALL and 6" LONG. THE PLATE HAS (23) TAPPED HOLES 5/16" X 18 IN FACES AND EDGES FOR CLAMPS OR STOPS AS NEEDED. PLATE ALSO HAS (2) REAMED HOLES 13/32" OR .406" TO ATTACH AS NEEDED TO MOORE JIG-BORE-JIG-GRIND, EDM, SURFACE GRINDERS OR BRIDGEPORT OR ANY OTHER MACHINES AS NEEDED. CURRENT LIST FOR A NEW No. 2 TWIN-ANGLE IS $560.00!!!! I HAVE BOTH THE #1 AND THE #2 LISTED AND BOTH ARE IN GREAT USED CONDITION. I ALSO HAVE MANY TOOLMAKER MADE COMPOUND ANGLE PLATES AND NONE ARE BETTER THAN USA AMERICAN TOOLMAKER MADE TOOLS!
SPECS LISTED BELOW ARE FROM HARIG MFG. FOR A NEW TOOL.
Twin Angle No. 2 INSIDE ANGLES: 3-1/4" X 2-1/4" AND 2-1/4" X 2"
. OVERALL DIMENSIONS ARE 3" WIDE X3" TALL X 6" LONG
Optional 3/4" shank (P/N 40-02) or 20mm shank (P/N 40-04) is available
Hardened and ground to "tenths" accuracy
