Tb woods XFC2000-5B e-trac ac motor micro-inverter
* 208-230 VAC +- 10% Input, 50/60 Hz, 3-PH, 1.9 Amps, KVA: 0.7-0.8
* Hp Output, 3.5-230 Volts, 2.2 Amps, KVA: 0.9
* NEMA 1 Enclosure with Keypad
* Overload Capacity = 150% for 60 Seconds
* Starting Torque = Greater than 100%
* Phase Imbalance (3 Phase only) = 2%
* Operating Temperature = 0 C to +40 C (NEMA 1/NEMA 4 models), 0 C to +50 C (Chassis model)
* Humidity = 90% RH or less, non-condensing
* Frequency Range = 0.1-400 Hz programmable in 0.05 Hz increments. (0.1 Hz above 99.95 Hz)
* Control System = Voltage Vector PWM
* Frequency Command Selections = 0-5 VDC, 0-10 VDC, 0-20 mA, 4-20 mA, direct or inverted; Digital Keypad; Program Memory Unit; Remote Keypad Unit
* Frequency resolution = 0.05 Hz or 0.1% of maximum frequency
* V/Hz Ratio = 0.24 - 8.85 (230 VAC models), 0.48 - 17.69 (460 VAC models)
* Acceleration and Deceleration Range = Programmable 0.1 to 600 seconds to
* maximum frequency (2 Each)
* Maximum / Minimum Frequency = Separately programmable to 400 Hz
* Preset Speeds = Up to 8 available; programmable to maximum frequency
* Dynamic Braking = Up to 60% for 6 sec. with standard DB resistor
* PWM Frequency = 7.8/9.2kHz (model dependent)
* LED Indicators = Red & Green for operation and fault annunciation
* Keypad Display = 6 digit, backlit LCD with special annunciators and unit symbols
* Ground Fault: Startup-all models; NEMA 4 models full-time; NEMA 1 and Chassis models full-time optional
* Short Circuit: Protected from damage
* Motor Overload: Programmable inverse time overload trip
* Overvoltage: Protected from damage. 500 mS ride-through
* Undervoltage: Protected from damage. 200 mS ride through, load dependent
* MOL Input Terminal: Programmable for N.C. or N.O. contacts.
* Torque Limit: Full time four quadrant Trip-Free operation
* Over Temperature: Protected from damage, warning display

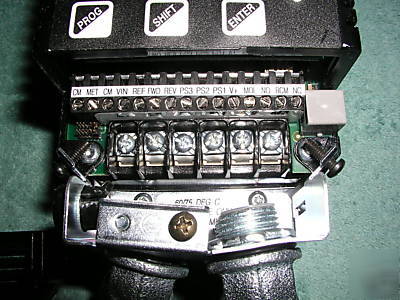

These came in a lot of spare parts so they may have a few light cosmetic marks on the body. The sheet metal piece on one of the drives is distorted slightly from the installation of the two conduit fittings, but it does not affect mounting of the terminal cover (Included). The display, indicator and keys are all unharmed and like new. All of the terminal screws are present and like new. These are clean inside & out.
