> Phd 8420-01-001 pneumatic angular air gripper

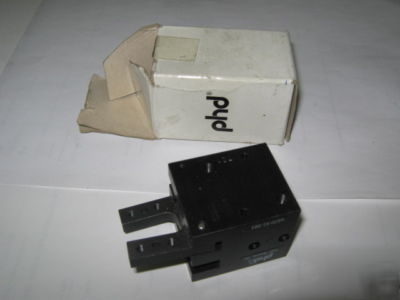

Phd 8420-01-001 pneumatic angular air gripper
PHD 8420-01-001 PNEUMATIC ANGULAR AIR GRIPPER
OPERATING PRESSURE STANDARD UNIT : 40 PSI MIN TO 150 PSI MAX AIR
OPERATING TEMP : -20 TO 180 DEG F
RATED LIFE : 5 MILLION CYCLES MIN WITH STANDARD SEALS
GRIP BACKLASH : WITHIN 1 DEG PER JAW
LUBRICATION : FACTORY LUBRICATED FOR RATED LIFE
MAINTENANCE : FIELD REPAIRABLE
DISPLACEMENT : .055 CUBIC INCHES
INTERNAL GRIP FORCE : .306 LB*
*GRIPPING FORCE PROPORTIONAL TO INPUT PRESSURE
