New tol-o-matic 0247-0000 float-a-shaft gearbox

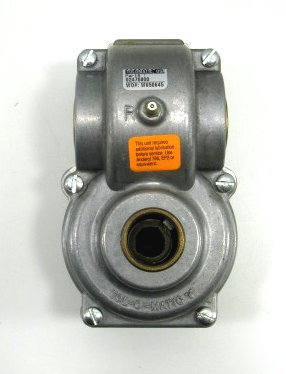

Tol-O-Matic 0247-0000 Float-A-Shaft Gearbox New
Float-A-Shaft is a universal right-angle gearbox coupling, consisting of two
45 helical gears that mesh at right angles. They can be operated in either direction
and slide axially along the drive or driven shaft. An aluminum housing encloses gears
which are keyed directly to the shafts. Unique floating design maintains perfect alignment
and eliminates the use of dangerous chain sprocket drives. Rated for a maximum of 500 RPM.
Mounting Style: Flat Base Mount
Bearing Type: Low Torque Journal
A Bore Keyway: 3/16 x 3/32 Inch
Max. Input Torque: 800 in-lb at 70 RPM
