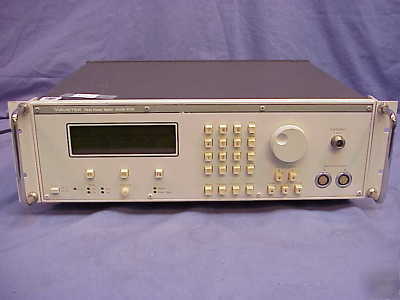

Gigatronics(wavetek) 8502 peak power meter hp-ib tested
Optional Sensors Not Included. Email for availability.
The 8502 Microwave Peak Power Meter brings you an excellent combination of speed, accuracy, reliability and
operator convenience. The versatile 8501 has the ability to accurately read pulses as narrow as 15ns, exceptionally
accurate CW performance and menu driven control, and a completely automatic detector calibration system.
The 8502 provides detailed information on both single and repetitive pulses as narrow as 15 ns, regardless of the
shape of the pulse and anywhere within the 30 MHz to 40 GHz frequency range.
* Frequency range: 30 MHz to 40 GHz (sensor dependent)
* Single or Repetitive Pulse and CW Measurements
* Power range: -20 to +20 dBm pulse mode, -40 to +20 dBm cw mode
* Pulse response; pulse width: 1 s to CW
* Internal 1.0 GHz, 1.0 mW power reference
* 110, 120/220, 240 Vac 10%; 50, 60, 400 Hz 5% operation
* Graph Mode for Plot of Pulse Profile
* Accurately Reads Pulses to 15 Nanoseconds
* Graphics Mode for Plot of Pulse and Reading Point
* Automatic Detector Calibration
