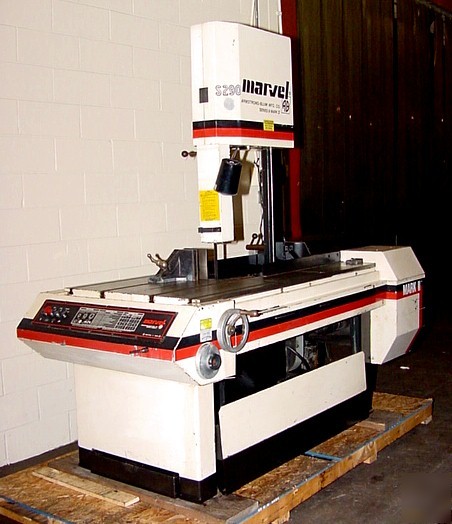

1990 marvel # 8 mark ii tilt frame vertical band saw
1990 MARVEL # 8 MARK II TILT FRAME VERTICAL BAND SAW
MARVEL UNIVERSAL VERTICAL BAND SAW
MODEL: SERIES 8-MARK II, S/N 825082-W, NEW 1988
CAPACITY: NOMINAL, BLADE AT 90 DEGREES ..... 18" X 20"
MAXIMUM ............................... 18" X 22"
BLADE AT 45 DEGREES, NOMINAL .......... 18" X 12-3/4"
BLADE AT 45 DEGREES, MAXIMUM .......... 18" X 13"
TABLE WORKING SURFACE, T-SLOTTED ........... 33" X 24-1/4"
TABLE HEIGHT ............................... 34-1/2"
BLADE LENGTH ............................... 14'6"
BLADE WIDTH/GAUGE .......................... 1"/ .035"
FEED FORCE ................................. 0 TO 140 LBF.
MAXIMUM VISE OPENING ....................... 20"
HEIGHT / WIDTH OF VISE JAWS ................ 6" / 12"
BLADE SPEEDS, INFINITELY VARIABLE .......... 50-450 F.P.M.
APPROXIMATE WEIGHT ......................... 2,750 LBS.
- MANUALLY OPERATED TILT COLUMN AND BLADE UP TO 45 DEGREES
LEFT AND RIGHT OF VERTICAL FOR MITER CUTTING
- BUILT-IN TILT PROTRACTOR FOR SETTING COLUMN AT DESIRED
- T-SLOTTED WORK TABLE WITH REMOVABLE VISES FOR SPECIALIZED
- STOPS TO LIMIT BOTH FORWARD AND RETURN TRAVEL OF THE
- 2 HORSE POWER BLADE DRIVE MOTOR
INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE!
