Lincoln ln-25 pro dual power - wire feeder - K2614-1

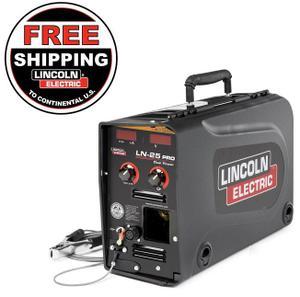

Lincoln Electric LN-25 PRO Dual Power - Wire Feeder - K2614-1
The MAXTRAC wire drive enhances performance, while the replacement case and many other upgrade options can be installed in less than five minutes.
The LN -25 PRO is available in 3 models:
The Dual Power model features a voltage control knob for superior arc control, digital meters for increased monitoring, MIG-STT capability, and can be powered with either a control cable or across the arc.
2-Step/trigger interlock provides comfort for long welds.
Sturdier and rugged spindle design with an incorporated brake.
Performance - Dual Power Model
Digital meters for increased monitoring.
Display shows wire feed speed or amperage and welding voltage.
Lightweight, impact and flame resistant polycarbonate case design keeps the internal components protected.
Potted and trayed PC board protects against moisture and corrosion.
Reel locking mechanism eliminates spindle cross threading.
Case can be replaced in less than 5 minutes eliminates downtime.
Timer kit available to prevent the electrode from sticking in the crater when using high wire feed speeds.
Dimensions (in) H x W x D : 15 x 8.7 x 23.2
Dimensions (mm) H x W x D : 381 x 221 x 589
Wire Speed Range ipm (m/min): 50-700 (1.3-17.7)
Solid Wire Size Range in (mm): .023-1/16 (0.6-1.6)
Cored Wire Size Range in (mm): .030-5/64 (0.8-2.0)
