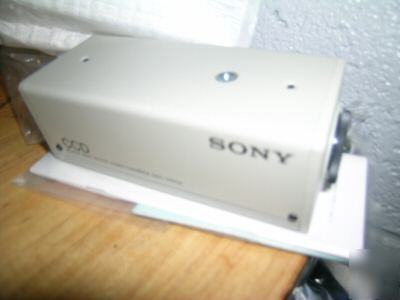

Sony ssc-M254 1/2" ccd b/w camera 24V ac 60HZ line-lock
1/2" CCD B/W CAMERA 24V AC 60Hz LINE-LOCK
* 1/2" HyperHAD CCD B/W camera
* 380 line horizontal resolution
* Excellent sensitivity (minimum scene illumination of 0.3 lux at f1.2)
* 8-step electronic iris function allows use of inexpensive manual iris lenses (1/60 ( 1/10,000 sec)
* CS-mount (C-mount adapter included)
* Accepts video type auto iris lenses
* AC 24V Line Lock with V-phase
* Accepts manual or auto iris C and CS mount lenses
* Electronically isolated allowing multiple cameras to be utilized on a single power supply
* 8 step electronic iris allows for the use of cost effective manual iris lenses
* Pic. Elements (HxV): 510 x 492
* Signal System/Scanning System: EIA 525/2:1
* External Sync: AC Line Lock
* Horizontal Resolution: 380 Lines
* Video Output: 1.0Vp-p, BNC x 1
* Power Requirement: AC 24V 10%, 60Hz
* Pickup Device CCD: 1/2" HyperHAD Interline Transfer CCD
* Dimensions: 2 1/2" x 2 1/8" x 6" (64 x 53 x 150mm)
* Minimum Illumination: 0.3 lux f1.2
* Electronic Iris (sec): Yes * step 1/60 ~ 1/10,000 sec
