Siecor corning minimass 5000 fusion splicer w/ cleaver

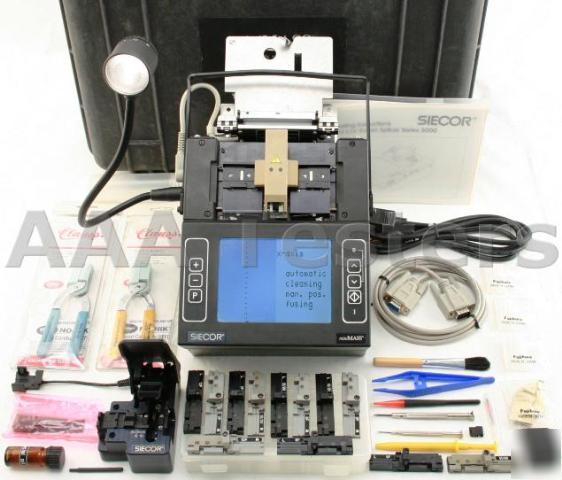

* Siecor Corning MiniMass 5000 Series C752 Fusion Splicer
* Siecor S46999-M9-C12 Fiber Cleaver
* Siecor S46999-M7-S643 Assorted Tool Kit
* RXS S46999-M7-S385 Attached Heat Shrink Oven
* Fiber Holder Sets w/ Case:
* (15) Fujikura FP-05 Fiber Protection Sleeves
* Clauss No-Nik 175 m Fiber Optic Stripper
Siecor Corning C752 MiniMass 5000 Series Singlemode & Multimode Single Fiber & Ribbon 12 Fiber Fusion Splicer
Includes Attached Heat Shrink Oven, Siecor S46999-M9-C12 Fiber Cleaver, Hard Carrying Case & Full Accessories!
Corning Cable Systems miniMASS micro fusion splicer automatically splices single fibers, as well as ribbons from two to twelve fibers. Because of its small size, the miniMASS fusion splicer is perfect in restricted locations where ribbon splicing has previously been impossible.
The miniMASS can splice standard fibers configured as pigtails, single loose fibers, factory-made ribbons, or field-ribbonized fibers. Aerial splice points, nodes and pedestals, as well as traditional high fiber count locations, are a snap with the miniMASS fusion splicer. With its L-PAS video imaging system, the unit automatically analyzes fiber positions, inspects cleave quality and cleanliness, fuses the fibers, and estimates individual splice loss. All of these steps are completed in 45 seconds. During the fiber inspection, an alarm and on-screen prompt warn the operator of any conditions the splicer interprets as less than ideal for a good splice.
The miniMASS fusion splicer provides 10 user-editable programs for storing splicing parameters. Up to 250 individual or 35 12-fiber ribbon splice loss values are held in memory that may be downloaded. The unit also provides reminders to perform routine electrode cleaning and replacement.
The fibers, prompts, and parameters are viewed on the large active matrix color LCD display that may be adjusted for contrast. The tilt stand also provides improved viewing and operation orientation.
* Snap-in magnetic handlers provide consistent fiber placement in grooves
* NEW! Large 5.5-inch color LCD improves fiber viewing
* Splices one fiber or ribbons with two to twelve fibers
* AC and camcorder-style battery power options in one case
* Current Optimization Program recommends current setting according to the fiber type, electrode conditions, and environmental influences
* One-button operation, fully automatic splice cycle
* On-screen error message combined with acoustic indicator
* Average lab loss for identical single-mode ribbons = 0.05 dB; typical field splice loss of 0.10 dB Summarized and individual splice loss upon completion of splice
* Active matrix color LCD with adjustable contrast displays all fibers in both x and y views alternately
* Flip-cover activated heat-shrink oven with LED heating indicator
* Handheld thermal stripper with DC and AC power options
Fixed V-groove, automatic Z-axis alignment
250 m and 900 m (single fibers), 0.40 mm x 3.15 mm (12-fiber ribbons)
Single-mode, Multimode, Specialty Single-mode (DS, NZDS)
Lab: = 0.05 dB identical single-mode ribbon
Field: < 0.10 dB single-mode ribbon
Black and White LCD, 25x, 5.5-inch diagonal
AC: 90-260 V, 100W, 50-60 Hz; automatic voltage range selection
DC: 12 V rechargeable battery provides approximately 15 ribbon splices fully
charged (two batteries included with splicer)
Current optimization program, altitude compensation adjustment
