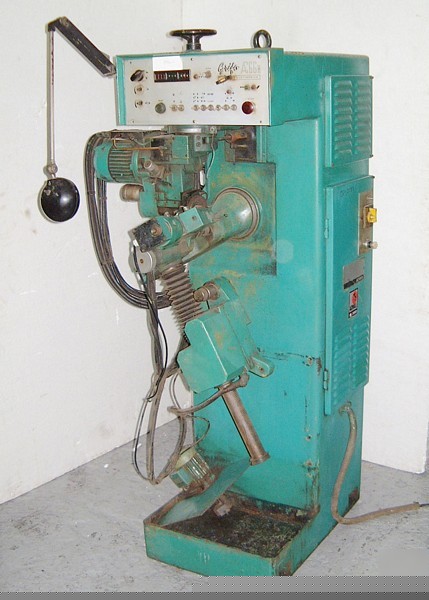

Grifo saw automatic grinder - need repair
automatic circular saw sharpenerelectronic hydraulic operatedOn the AC66N the tooth positioning system is run by a drive motor giving a continuous blade rotation. Electronically controlled mechanical feeder and optical probe stops the blade in the correct position for grinding each tooth. The types of tooth ground are triangular alternate gullet tooth etc missing or broken teeth on the saw are automatically skipped to the next tooth. Capable of jumping 9 teeth for programming the grind sequence of blades with group teeth with different rakes.Technical Specification:Model AC66Serial number 6684Year of manufacture 1983Diameter of blades accepted 100-660mm diaMax thickness of teeth 8mmPitch unlimitedNumber of teeth ground unlimitedAngle of tooth back and tooth facewith automatic reversal for alternate teeth 0-45 degFront rake -5 45 degBack rake 0-45 degAutomatic adjustable wheel in feed 0-0.9mmHydraulic motor 0.5hpMain motor 0.75hpCoolant pump motor 0.25hpMachine weight 510kgsDimensions
