Agilent hp sunrise calan star 3010B slms catv 3010
* Agilent HP CALAN Star 3010B SLMS

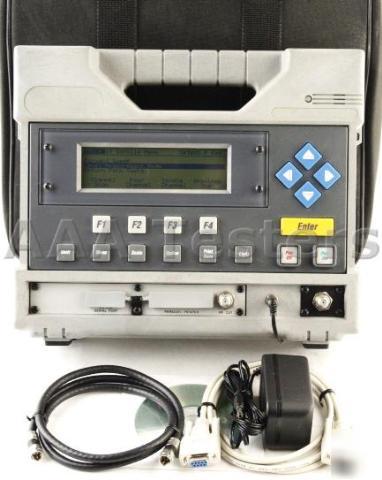

Agilent HP Sunrise CALAN Star 3010B SLMS CATV Analyzer
Time proven product for maintaining the networks of today and tomorrow.
Whether for routine maintenance or new interactive network installations, CaLan products offer a range of solutions. These products cover the entire 5 MHz to 1 GHz frequency range with exceptional speed 60 channels of visual and aural carriers in less than 2 seconds.
This portable field instrument with forward sweep and SLM capability can also receive ingress data transmitted by the 3010H.
Cost-Effective Signal-Level Measurement
Digital signals cannot be measured with conventional methods used for video carriers because their power is spread over a band unique to each form of digital signal. CaLan products incorporate a digital signal measurement capability technicians need only enter the center frequency, span and format for each digital signals in the unit s channel table. The family also provides accurate average power measurement for return path TDMA (bursted) carriers.
Digital signal power is the total average power over a channel bandwidth around its center frequency. The 3010B can adapt to the unique bandwidth power characteristics of digital signals to make measurements as simple as reading a number on the display.
The 3010B can store up to 90 history files in any one of six formats: level measurements, normalized channel scan traces, sweep traces, spectrum scan traces, and ingress measurement results. Each file includes time and date stamps with a 40-character, user-defined label.
Digital Signal Power Levels Formats: QAM, QPR (DMX), QPSK, and VSB, bursted
Amplitude Accuracy: 1.5 dB (typical)
Burst repetition rate: <1.5 sec
Tuning Configuration: Standard, off the air, HRC, IRC, PAL, SECAM, user-defined
Video bandwidth 300 kHz, automatic 10 Hz C/N
Amplitude Accuracy For Sweep and Carrier Measurements
Calibrator: 0.25 dB at 113.36 MHz, 0.2 MHz
Input Match: 0 dB attenuation, >14 dB; all other settings, >20 dB
Capture Ranges: < 100 Sec - < 1 Sec
Sec in decades, < 3 Sec and > 3 Sec
Maximum TDMA Pulse Width Not Captured: >500 mSec
Accuracy: 0.2%, 30% of reading
