Hp / agilent 10780C remote receiver (10780U) eq 10780F

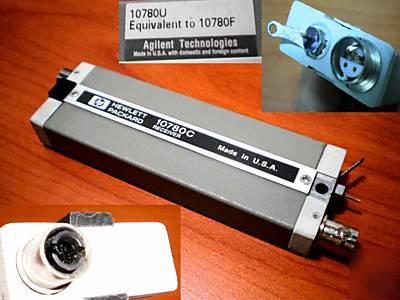

HP / Agilent 10780C Remote Receiver (10780U)
10780C , (sticker with label 10780U -> Equivalent to 10780F)
Typical Power Requirements: +15 volts at 136 mA, Maximum Sensitivity: 2.2 W (10780F with 2-m cable, becomes 5.0 W with a 10-m fiber cable0. Heat Dissipation: 0.0 W for remote sensor, 2.0 W typical for receiver
Output Signal: Differential square wave at Doppler-shifted split frequency (100 kHz to 7.2 MHz)
Fiber-Optic Cable Length: 2 m standard, 10 m maximum recommended.
Alignment Tolerances: Roll: 3 , Pitch: 1 , Yaw: 1
Used. In Clean and good physical condition. Not tested.
