> Mini-circuits zfl-1000H amplifier 10-1000MHZ 28DB
Mini-circuits zfl-1000H amplifier 10-1000MHZ 28DB
Mini-Circuits ZFL-1000H Amplifier 10 to 1000 MHz
Price New from Manufacturer: $219.00
Mini-Circuits ZFL-1000H Amplifier Specifications:
* Frequency Range: 10 to 1000 MHz
* Maximum Power Output (1 dB Compression): +20 dBm
* Maximum Power Output, Input (No Damage): +5 dBm
* Dynamic Range, NF: 5.0 dB Typ.
* Dynamic Range, IP3: +33 dBm Typ.
* VSWR (:1) Max. In/Out: 2.0/2.0
* Connectors In/Out: SMA(Female)

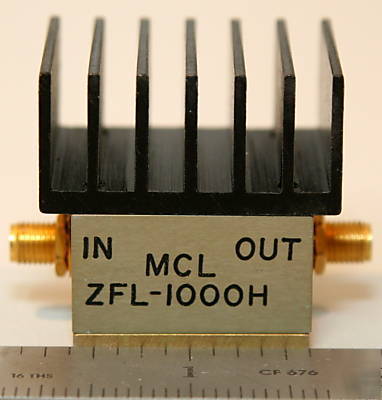

Mini-Circuits ZFL-1000H Amplifier
