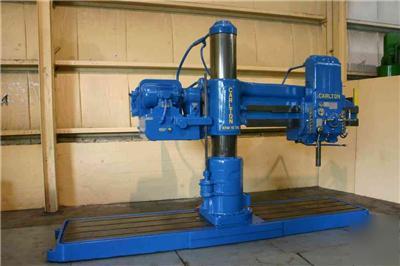

6' x 15" carlton radial arm drill
6' X 15" CARLTON RADIAL ARM DRILL
SERIAL ............................... 3A4608
MODEL ................................ 3A
AREA OF BASE, DUAL BASE .............. 74 X 43 PER SIDE
SPINDLE SPEEDS ....................... (36) 15 TO 1500 RPM
FEEDS ................................ (18) .004 TO .125 IPR
TAP LEADS ............................ 8, 11-/12, 14, 18, 20, 27 TPI
DIAMETER OF SPINDLE .................. 3
TAPER IN SPINDLE ..................... #5
SPINDLE TRAVEL ....................... 18
DISTANCE SPINDLE TO COLUMN ........... 15 MIN, 72 MAXIMUM
DISTANCE SPINDLE TO BASE ............. 12 MIN, 66 MAXIMUM
TRAVEL OF ARM ON COLUMN .............. 36
TRAVEL OF HEAD ON ARM ................ 57
POWER ARM ELEVATION .................. YES
POWER HEAD TRAVERSE .................. YES
POWER CLAMPING ....................... YES
MOTOR ................................ 15 HORSEPOWER
