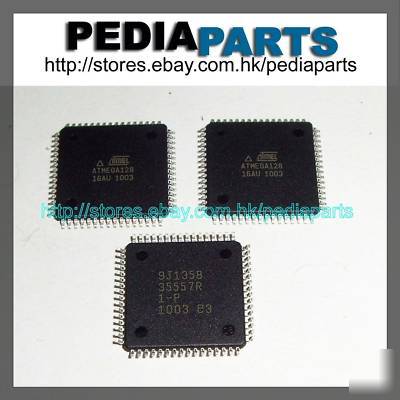

1PCS ATMEGA128-16AU MEGA128-16AU MEGA128 TQFP64 atmel
High-performance, Low-power AVR 8-bit Microcontroller
133 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers + Peripheral Control Registers
Up to 16 MIPS Throughput at 16 MHz
High Endurance Non-volatile Memory segments
128K Bytes of In-System Self-programmable Flash program memory
Write/Erase cycles: 10,000 Flash/100,000 EEPROM
Data retention: 20 years at 85 C/100 years at 25 C(1)
Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
Up to 64K Bytes Optional External Memory Space
Programming Lock for Software Security
SPI Interface for In-System Programming
JTAG (IEEE std. 1149.1 Compliant) Interface
Boundary-scan Capabilities According to the JTAG Standard
Extensive On-chip Debug Support
Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface
Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and
Real Time Counter with Separate Oscillator
6 PWM Channels with Programmable Resolution from 2 to 16 Bits
2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
Byte-oriented Two-wire Serial Interface
Dual Programmable Serial USARTs
Master/Slave SPI Serial Interface
Programmable Watchdog Timer with On-chip Oscillator
Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated RC Oscillator
External and Internal Interrupt Sources
Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and
Software Selectable Clock Frequency
ATmega103 Compatibility Mode Selected by a Fuse
64-lead TQFP and 64-pad QFN/MLF
