Icom ic-A23 vhf air band handheld transceiver

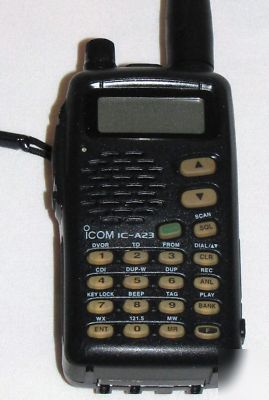

ICOM IC-A23 VHF Air Band Handheld Transceiver
Excellent Condition Like New

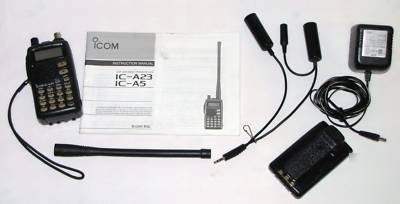

Includes: Transceiver, 2 Battery Packs w/ Belt Clips (1 Brand New), Antenna, Handstrap, Wall Charger, Manual and Headset Adapter
ICOM IC-A23 760 Channel Air Band Handheld VHF NAV/COM Transceiver
ICOM is the name pilots have come to know and trust. Fly the airwaves with the latest ICOM airband transceiver!
Measuring only 2 9/32(W) X 4 7/32(H) X 1 1/8(D) in., it is nearly half the size of the IC-A22, and another third as small as the IC-A21. Yet, it is every inch an ICOM, chock full of the useful features you've come to rely on.
Its palm size is very convenient for carrying on your belt with the supplied belt clip. The IC-A23 has water resistant construction, equivalent to JIS-4 grade, which allows safe operation in rainy conditions.
The IC-A23 has a VOR navigation function, which indicates the bearing to or from the VOR station. A Course Deviation Indicator (CDI) shows the deviation between your flying course and the desired course. In CDI mode, the ABSS (Auto Bearing Set System) function allows you to center your flying course in one touch. The IC-A23 is capable of semi-duplex operation in navigation mode.
Well labeled and well spaced keys are easy to operate, even while wearing gloves. The back mounted battery puts the weight of the unit in your palm, allowing a comfortable grip. The wide and large LCD lets you see every readout at a glance.
Volume and channel selection can be controlled by the rotary selector on the top panel, or Up/Down switches on the front. You can change the assignment at your convenience. The volume level and channel number are displayed during adjustment.
Received conversation can be recorded and played back with the built-in voice recorder. Recorded contents can be transmitted and kept even with power off, or when the battery is discharged.
The IC-A23 has water resistant construction, equivalent to JIS-4 grade, which allows safe operation in rainy conditions.
This information is taken directly off of the ICOM IC-A23 brochure.
* Compact and water-resistant construction
* Dimensions: 2 9/32(W) X 4 7/32(H) X 1 1/8(D) in.
* Water resistant to JIS 4 specifications
* Receive and transmit on all 760 channels (118.000 MHz - 136.975 MHz)
* VOR navigation (Rx only) 108.000 MHz - 117.975 MHz
* CDI (Course Deviation Indicator)
* Navigate to and from the VOR station
* Well labeled and well spaced keys
* Reversible analog rotary selector and digital Up/Down switches
* Voice recording and playback function
* 200 memory channels (20 Ch. X 10 banks) with 6 character names
* One touch access to 121.5 MHz emergency channel
* Large capacity Ni-MH battery pack
* NOAA weather channels and Duplex operation
* Tag scanning and memory bank scanning
* ANL (Auto Noise Limiter) for noise reduction
* Backlit display and keypad for night operation
* Tx/Rx: 118.000-136.975 MHz
* Rx: 108.000-117.975 MHz (VOR)
* Rx: 161.650-163.275 MHz (weather channels)
* No. of memory Ch.: 200 (20 Channels X 10 banks)
* Power supply requirement: 9.6 V - 12.0 V DC (9.6 V standard)
* Current drain (at 13.75 V DC, typical):
* Tx: 1.8 A (at max. power)
* Rx: 500 mA (at max. audio)
* Operating Temperature Range: -10 C to +60 C; -14 F to +140 F
* Frequency stability: 17 ppm (-10 C to +60 C)
* Dimensions (projections not included)
* 58(W) x 107(H) x 28.5(D) mm
* 2 9/32(W) x 4 7/32(H) x 1 1/8(D) in
* Weight (with BP-200L and antenna): 340 g; 12 oz
* Antenna connector: BNC type
* Modulation system: Low level modulation
* Modulation limiting: 70-100%
* AF harmonic distortion: Less than 10% (at 60% mod.)
* Hum and noise ratio: More than 35 dB
* Spurious emissions: Less than -60 dB
* Microphone impedance: 150 ohms
* Receiving system: Double conversion super-heterodyne
* AM: Less than 1.0 V (at 6 dB S/N)
* FM: Less than 1.0 V (at 12 dB SINAD)
* Hum and noise ratio: More than 25 dB
* Spurious response rejection ratio: More than 60 dB
* Audio output power (at 9.6 V DC): More than 500 mW with an 8 ohm load
