Hp/agilent 8153A mainframe 81533A+81521B+81536A module

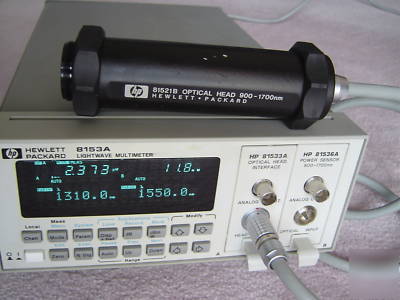

HP/Agilent Lightwave 8153A Mainframe
with 81533A Interface Module + 81521B Optical Sensor Head
+ 81536A Optical Sensor Module (tested)
The Lightwave measurement System combination is used in good cosmetic, tested workable in functions.
Specifications for 8153A Mainframe:
HP/Agilent 8153A mainframe is a flexible, multi-purpose tool, which will measure all your basic fiber optic parameters.
With its plug-in sources, power sensors and return loss modules, it easily adapts to your changing measurement requirements.
Its unprecedented and traceable performance lets you characterize your devices more precisely and repeatably than before.
Please review the technical details in the website:
http://cp.literature.agilent.com/litweb/pdf/5962-9321E.pdf
Specifications for 81533A Interface Plug-in Module:
HP/Agilent 81533A interface module operates with the 8152xA/B optical head for 8153, 8163, and 8164 mainframes.
http://cp.literature.agilent.com/litweb/pdf/81533-90014.pdf
Specifications for 81521B Optical Sensor Head (use with 81533A/81533B):
* Wavelength Range: 900-1700nm
* Display Resolution: 0.001 dBm. 100 pW
* Applicable Fiber Type: Parallel beam, 9/125 m to 100/140 m, NA < 0.3
Specifications for 81536A Optical Sensor Plug-in Module:
* Wavelength Range: 800-1700nm
* Display Resolution: 0.001 dBm. 10 fW
* Applicable Fiber Type: 9/125 m
