New glacern gdv-620FE double station cnc milling vise

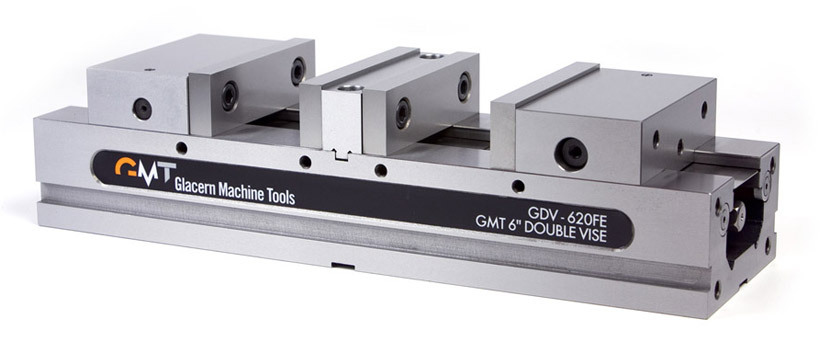

GMT GDV-620FE Double-Station Milling Vise
This listing is for one (1) GDV-620FE Double-Station Milling Vise in brand new condition.
The GMT GDV-620FE is manufactured from premium 80,000 PSI ductile cast iron and features precision ground sides and a unique leadscrew design that allows clamping of two different-sized workpieces. The front movable jaw can be fixed to convert the vise into a large single-station vise. The vise bed and jaw plates are hardened to 45 HRC. Each moveable jaw provides over 8,000 pounds of clamping force and is secured with a hardened eccentric pin to prevent workpiece lift.
GMT GDV-620FE Product Spotlight
12.25" jaw opening when converted into single-station
Clamping repeatability +/- 0.0002"
GDV-620FE Double-Station Milling Vise
Polished Handle and Extension Socket
GDV-620FE Reversed-Jaw Premium Vise Photo Gallery
