Chattanooga intelect legend dual-freq ultrasound INT001
Chattanooga Intelect Legend Dual Frequency Clinical Ultrasound # INT 001
The Intelect Legend US allows you to select a frequency of 1 or 3.3 MHz without changing sound heads. Sound head is 5 cm2(included). Duty cycle may be set at 10%, 20%, 50% or Continuous.
* Electronic Signature :Automatically calibrate the system to any size Intelect Legend sound head.
* Ergonomic applicators :A new ergonomic design that offers a 20 degree contour in the applicator hand grip. This ergonomic extra will help deliver uniform ultrasound with greater clinician comfort.
* Head Warming : A feature traditionally available in more expensive brands of ultrasound. This will help curb the anxiety of patients during the first moments of treatment.
* Easy as One-Two-Go : In just two steps you are ready to start treatment, just set Intensity and press Start.
* Tactile Touch Control : Digital electronics and new user interface design give you simple tactile touch control of all system parameters.
* Programmable Start-Up Presets : All power-up presets can be individually customized to meet the clinician s needs.
1. LED Screen Display - LED Parameter Display Field. : Displays Treatment Time, Output Intensity, Frequency, Duty Cycle, Display and Head Warm.
2. Illustrated Control Panel : Membrane switches control LED screen display and treatment parameters.
3. Intensity (Power) : Select this prompt to set or modify output power intensity.
4. Time : Select this prompt to set or modify treatment time in minutes.
5. Frequency : Select this prompt to change to a frequency of 1 MHz or 3.3 MHz.
6. Duty Cycle : Select this prompt to change to a duty cycle of 10%, 20%, 50% or Continuous.
7. Head Warm : Select this button to warm the head of the ultrasound applicator prior to treatment.
8. Display : Select this button to change output display from W/cm2 (Intensity) to Watts (Power).
9. Stop : Select this prompt to stop a treatment session.
10. Pause : Select this prompt to pause a treatment session.
11. Start : Select this prompt to begin a treatment session.
Intelect Legend Ultrasound
~100 - 250V, 1.0A 50/60 Hz
1.0 MHz, 3.3 MHz (all +/- 5%)
4.0 cm2 +/- 1.0 cm2 for the 5 cm2 crystal
Maximum beam non-uniformity ratio:
(50% Duty Cycle, pulsed mode)
(20% Duty Cycle, pulsed mode)
(10% Duty Cycle, pulsed mode)
Variable from 0 Watts to 20 Watts, 10 cm2 crystal at 1.0 MHz, 1 - 10 Watts at 3.3 MHz
Variable from 0 Watts to 10 Watts, 5 cm2 crystal
Variable from 0 Watts to 4 Watts, 2 cm2 crystal
+/- 20% for any output above 10% of maximum
Temporal Peak / Average Intensity Ratio
2:1 +/- 20% for 50% Duty Cycle
5:1 +/- 20% for 20% Duty Cycle
9:1 +/- 20% for 10% Duty Cycle
1 MHz or 3.3 MHz, modulated 100% by the 100 Hz rectangular
* wave with the selected Duty Cycle
1 MHz or 3.3 MHz, nominal signal that is activated as long as the
* 5cm2 Sound Head Applicator
* Conductor Ultrasound Gel - 8.5 oz (250 ml) Bottle (1x)

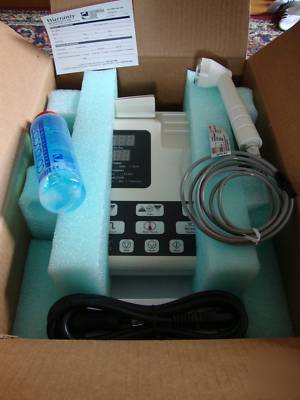

INCLUDED IN BOX (SHOWN): Ultrasound machine, 5cm2 Applicator, Ultrasound Gel, Power Cord, and Warranty Card.
IMPORTANT: Sorry, returns will not be accepted. Item is in the same condition as it was when purchased. Never used.
