Ransco 924-1-4-d-0-120/60 temp test chamber w/ ieee 488

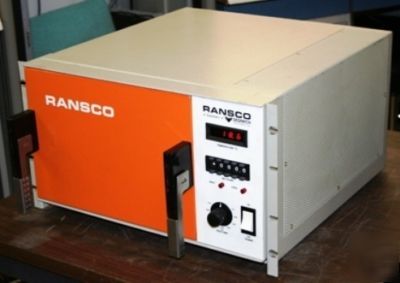

Ransco / Despatch 924-1-4-D-0-120/60 Temperature Test Chamber w/ IEEE 488 Interface
IEEE 488 Interface List Price:
POWERS UP!! HEATS UP!! GUARANTEED WORKING!!
* Precision high/low temperature simulation with programmable profiling control
* Superior heating system, five-year heater warranty
* Three-year controller warranty
* Selectable RS232 or RS485 digital communication
* Four recipes of six steps each (24 programming steps total)
* Loop up to 255 times to any step
The 900 Series Benchtop Temperature Chambers are designed for high and low temperature simulation where high performance and close temperature tolerance are required. The units are ideal for small lot qualification testing, burn-in, life test, temperature cycling or research and development. All 900 Series are bench models designed for continuous use with ease of operation and maintenance in mind.
The Ransco Industries Temperature Test Chamber permits component testing under either hot to cold temperature environments. A closed air flow system transfers heat to or from objects under test. The chamber is heated by a low-inertia coil heater and cooled by the injection and evaporation of a liquefied gas. An advanced (Ransco RDC) control system holds chamber temperature to close tolerance.
Programmable Profiling Interface:
* Tolerances: System controllability of 0.3 C ( 0.5 F) over the chamber s entire range; Repeatability and digital setability to 0.1 C ( 0.18 F).
* Ease of Use: Arrow buttons to change setpoint; One press of the DISPLAY button returns you to the normal mode of displaying process temperature and setpoint no matter what other mode you are in.
* Profiling: Ramping operation includes four recipe files of up to 6 steps each; recipe files can be linked to make a single 24 step program; programs can be set up as either time-based or ramp rate-based; program looping to any step; loops can be repeated from 1 to 255 counts or continuously (infinite loops); guaranteed soak and wait for input ; one flexible event relay driver which can also be used as an alarm.
* Computer Interface: Controller includes selectable communications RS232/485 PC; each chamber includes a DB25 to DB9 cable to connect to your PC. The 982 control can also be configured for multi-chamber network communication.
Three basic models of doors are offered; Ported with Window, Blank, and Ported Door. All feature durable stainless steel interior, positive latching, removable gaskets and quality construction designed for continuous use. All doors have a shelf built into the door. All ports are provided with a rubber plug. Windows are multi-pane with desiccant material added to prevent internal condensation during low temperature operation.
Each model is available with the following cooling types:
* High pressure (HP) liquid carbon dioxide (CO2) best for when chamber use is low and cylinder will sit idle for long periods of time.
* Low pressure (LP) liquid carbon dioxide (CO2) best if chamber usage is high and cylinder will not sit idle.
* Liquid nitrogen (LN2) gives the most cooling effect per pound and is more inert the CO2.
* In addition optional dual cooling packages are available: HP CO2/LP CO2, LN2/HP CO2
* Chamber Size: 10W x 10D x 7H in (25 x 25 x 18cm)
* Capacity in Cubic Feet (Liters): 0.4 ft3 (11.3)
* Overall Size: 17.5W x 18.5D x 11H in (44 x 47 x 28cm)
* Approximate Weight: 38 lbs. / 17 kg
* Temperature Range: -100 to +525F / -73 to +274C
* Average Heat Up Rate (Deg/Min): 72F / 40C
* Average Cool Down Rate(Deg/Min): 46F / 26C
* Temperature Control: 0.25F / 0.14C
* Live Load Capacity: Watts: 500, Temp: -85F / -65C
* Air Flow: Horizontal 50 cfm / (24 lps)
If you have any questions please email us at: ****@mhzelectronics.com or call Monique at 1-866-MHZ-ELEC (1-(***)-649-3532) Toll Free.
