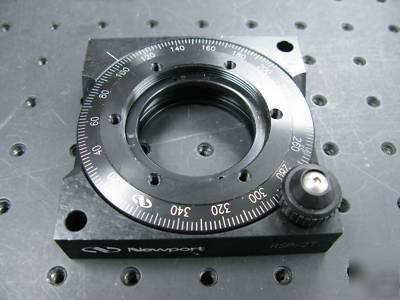

New port rsp-2T rotation stage (old style)
The RSP-2T Rotation Stage features full ball bearing races, provides exceptionally smooth and continuous angular positioning for 2 inch (50.8 mm) diameter optics or components. A delrin retaining ring is provided to secure the optic. The rotating platform has six 8-32 threaded holes for added mounting flexibility. Like the RM25A, the RSP-1T has an internal thread that enables Newport Glan-laser calcite polarizers and CH Series cube beamsplitter holders to be rotated in this stage. Polarizers or wave plates can be coarsely aligned using the knurled edge of the rotating platform while fine adjustment is achieved with the knob. Angular position is indicated on a 360 scale graduated in 2 increments. The adjustment knob can be securely locked by tightening the screw in the end of the knob.
