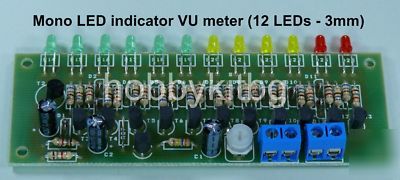

Mono LED indicator VU meter (12 3mm LEDs) - NEW
This is a single function indicator designed with discrete elements.
The circuitry consists of a level indicator for low frequency signals.
The LED indicator is mono type.
Input signal is standard - 0.750 V (Low level). VU meter not work speaker output (work only line level signal - 0.750 V).
Input level control - trimmer-potentiometer.
12 LED's (6 green, 4 yellow and 2 red 3mm diffused LED's).
Supply voltage DC - 9 to 15 V (max 120mA).
Overall dimensions PCB 105x37mm (4.13"x1.45").
- 1x Mono LED indicator VU meter (12 3mm LEDs).
