Datasim 6100 patient simulator -for your training needs

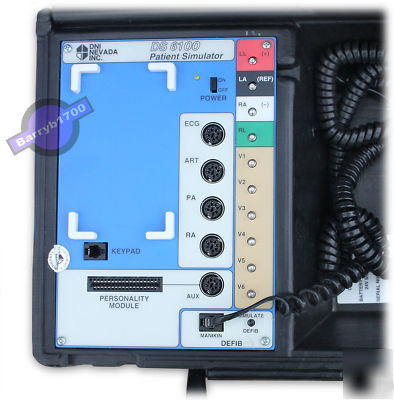

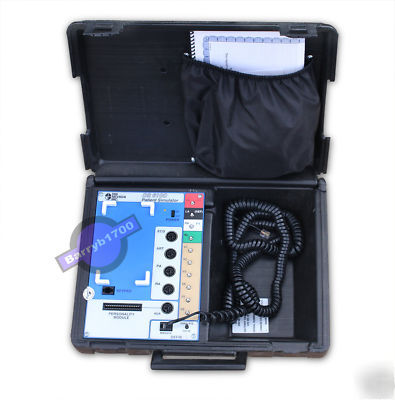

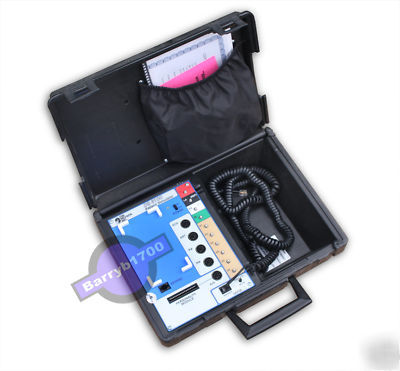

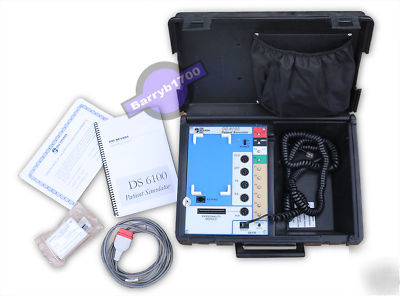

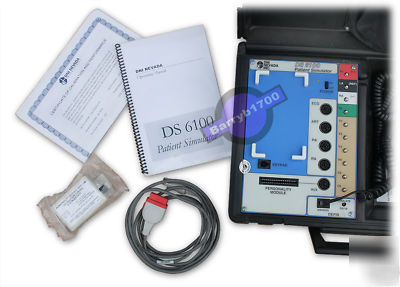

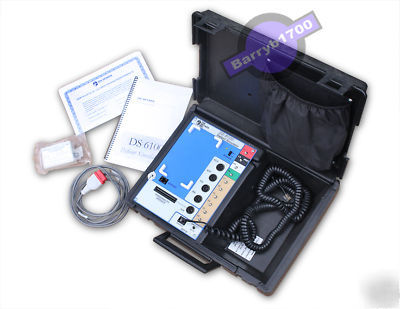

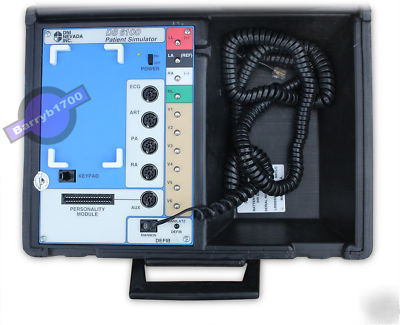

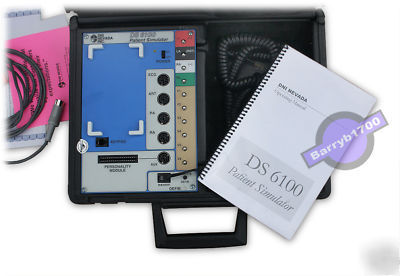

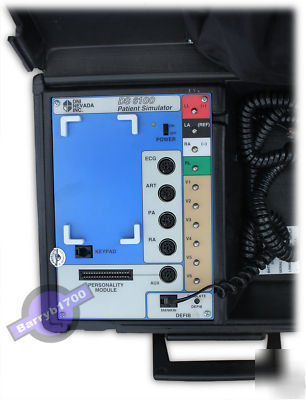

DataSim 6100 Patient Simulator
A Versatile Training Tool that Features Six Channels for Generating ECG Arrhythmias, Blood Pressure, and Respiration.
The Patient Simulator Designed To Meet Your Training Needs.
An upgraded version of the popular DataSim 6000 model, the DataSim 6100 offers six channels for generating ECG arrhythmias, blood pressure, and respiration.
New features include a standard defib training capability, along with a battery that s now built right into the unit itself. All control keys and display prompts can be found on DataSim s convenient, hand-held keypad, which is connected to the unit with a flexible, 20 telephone-style cord that gives you exceptional range of motion.
Critical Care Nurses, ACLS program instructors, and other clinical educators can use DataSim 6100 to generate an extensive range of simulations, from a simple normal sinus rhythm to a complex Swan-Ganz catheter insertion. In any of the following training situations, this instrument proves a useful, comprehensive tool.
AC power provided by (choice of) 115 V or 230 V charger (standard with instrument)
Battery Type:12 V, 1.9 AH sealed lead acid rechargeable
Battery Charge Time: 5 to 95 % of complete charge in 14 hours
- Low Level: 12-Lead electrode snaps
- High Level: Switchcraft 15GM7F
- Pacemaker Artifact: -8 mV, 1 ms
- Sample Rate: 250 sample/s max
- Linearity: 2.5 Hz triangular wave
- Chart Speed: 2.5 Hz square wave
- Amplitude: 0.25, 0.50, 1.00, 1.50, 2.00, and 2.50 mV
- Transducer: 5 and 40 uV/VmmHg
- Exciter Voltage: 10 Vac or dc max
- Static Range: 0 to 250 mmHg, adjustable in 5 % increments
- Accuracy: 5 % or 1 mmHg, whichever is greater
- Waveforms: Static, square wave, and physiological dynamic
- Static: 0 to 250 adjustable in 5 % increments
- Square Wave: 0 to 250 mmHg adjustable in 5 % increments
- Delta Impedance: 0.25 to 2.50 Lead I
- Base Impedance: 250 Lead I, 750 Lead II
- Rate: 0, 10, 20, 40, and 80 per min
- Delta Impedance: 0.25, 0.50, 1.00, 1.50, 2.00, and 2.50
General (six channels) - ECG/arrhythmia, respiration, arterial pressure, PA pressure, RA pressure, and auxiliary channel for optional cardiac output, CO2, and other parameters.
Fundamental Rhythms and Sequences
Sinus tachycardia and bradycardia
Ventricular and sinus asystole
Atrial flutter and fibrillation
AV blocks (1st degree, 2nd degree Mobitz I and II, and 3rd degree)
PVCs at 1 to 35/min for any rhythm
Atrial tachycardia with aberrant conduction
ST-segment elevation and depression
Pacemaker (atrial, ventricular, and AV sequential)
(33 cm H x 25.4 cm W x 11.94 cm D)
