Bimba pancake 5" pneumatic pancake cylinder fo-505-4
BIMBA PANCAKE 5" PNEUMATIC PANCAKE CYLINDER FO-505-4

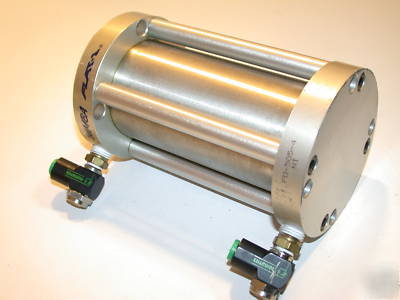

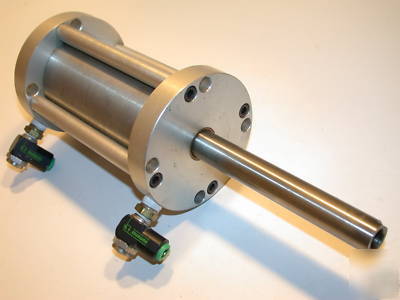

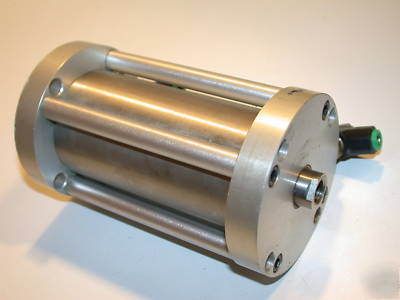

This is a Pneumatic Double Acting Bimba Pancake Air Cylinder, Model # FO-505-4 with 5" of stroke, a Male rod end 3/4" piston - 2 1/2" Bore with air ports shown.
Cylinder measures 3 3/4" Diameter.
This cylinder will exert a force of approximately 5 times the air line pressure.
304 stainless steel body, oil-impregnated bronze rod bushings and 303 stainless steel piston rods.
Parallel cylinders can be mounted on close "centers" and mounting holes provided.
