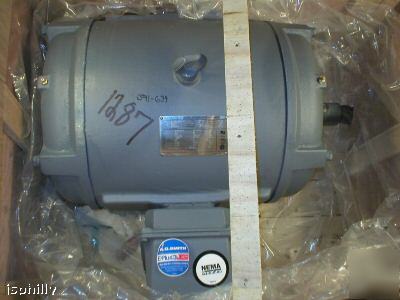

A. o. smith E634 50HP electric motor nos
A. O. Smith E634 50HP electric motor
A. O. Smith retail price $2985
EMI - 39333100 -Voltage - 230/460
Frame - 324TS-Time Rating - CONT
RPM - 3555-Ambient (C) - 40.00
Efficiency - 93.0-Nema Code Letter - F
Outline Drawing - 18725701-001-Drv. Bearing - 6312
Conn. Diagram - 80022801-Non-Drv. Bearing - 6312
Efficiency (%)- 94.5 - 95.2 - 95.5 - 94.9 - 91.5
Power Factor (%) -85.8 - 85.1 - 83.6 - 51.8 - 58.8
Amps - 66.20 - 50.70 - 44.20 - 48.00 - 22.00
Speed (RPM) - 3540 - 3557 - 3564 - 3576 - 3587
Full Load Torque (Lb-Ft): 64.8 - L.R. Torque (% F.L.):159%
L. R. Amps:341.00 - B.D. Torque (% F.L.):295%
No Load Amps: - 17.2 - Temp Rise @ Full Load (C): - 33.3
