31.50"X20.10"Y29.10"mori seiki 5-axis cnc vertmach cntr

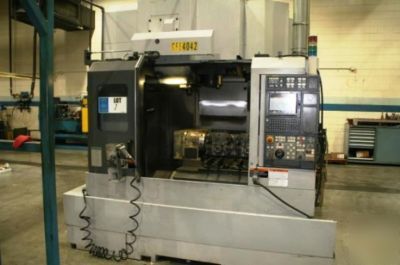

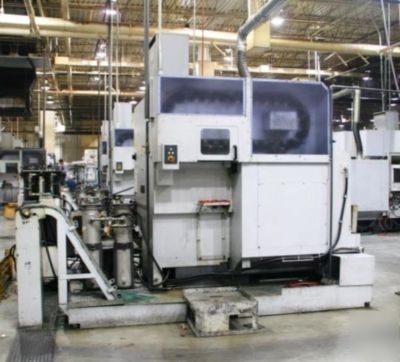

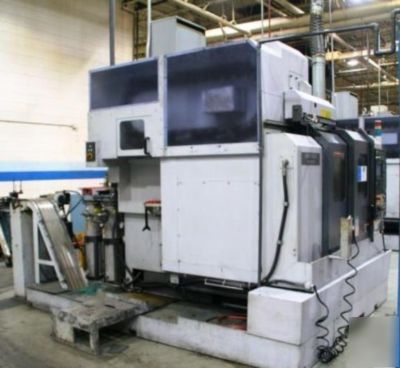

ONE Preowned MORI SEIKI 5-AXIS CNC Vertical Machining Center
MDL. NV-5000A/50, S/N NV501CH1279, MFG 2003
X-AXIS TRAVEL................................................. 31.50"
Y-AXIS TRAVEL................................................. 20.10"
Z-AXIS TRAVEL................................................. 29.10"
TABLE SIZE........................................................ 43.30" X 23.60"
TABLE WORK WEIGHT CAPACITY.................. 2200 LBS.
SPINDLE SPEEDS............................................. TO 8000 RPM
SPINDLE TAPER................................................ CAT 50
SPINDLE DRIVE MOTOR................................... 30 HP / 25 HP
TOOL CHANGER................................................ 30 ATC
RAPID TRAVERSE (XYZ)................................... 1650 IPM
CUTTING FEEDS (XYZ)..................................... 1650 IPM
MAX. TOOL DIAMETER...................................... 4.90"
MAX. TOOL LENGTH.......................................... 11.80"
MAX. TOOL WEIGHT.......................................... 17.60 LBS.
TOOL CHANGE TIME......................................... 1.00 SECONDS
CHIP-TO-CHIP..................................................... 2.60 SECONDS
MACHINE DIMENSIONS..................................... 96"X106"X102"
MACHINE WEIGHT............................................. 13,860 LBS.

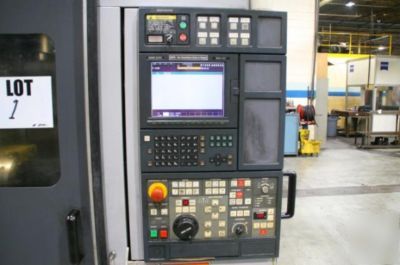

MORIC MSG-501MB CNC W/ CRT & 4/5-AXIS INTERFACE
4TH-AXIS NIKKEN PROGRAMMABLE ROTARY TABLE
(2) 5TH-AXIS MECHANICAL ROTARY INDEXERS, M-CODE DRIVEN
7.8" COLUMN HEIGHT EXTENSION (200MM)
ATC SHUTTERS - AUTO DOOR - LOAD METER
RUN METER - TOOL LIFE MANAGEMENT -
HIGH PRESSURE DIN STYLE THRU- SPINDLE COOLANT
COOLANT GUN, CHIP BLASTER (J8)

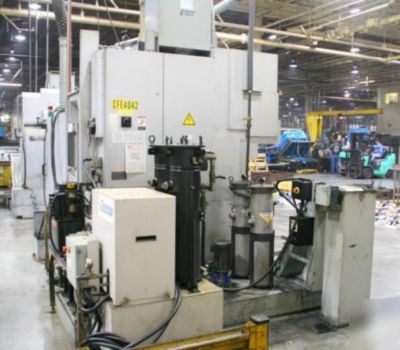

DUAL STAINLESS FILTERS & FILTER CAP WING NUT REMOVAL
DUAL TURBO MAGNETIC CONVEYOR SYSTEM
PRICE: ON SITE, (PHILADELPHIA, PA) ... . $159,500.00
