2 bimba 1 1/2" double end air cylinders fsd-091.5-hm

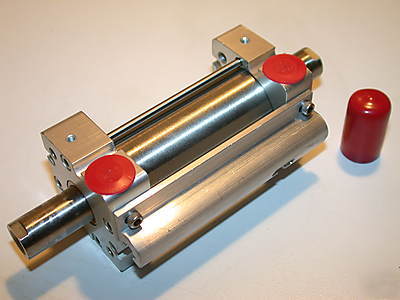

2 BIMBA 1 1/2" DOUBLE END AIR CYLINDERS FSD-091.5-HM
Magnetic Sensing - includes mounting rail
Heads - Anodized Aluminum Alloy
Piston Rod - Ground and Polished 303 Stainless Steel
Rod Bushing - Oil Impregnated Bronze
Rod End Block - Anodized Aluminum Alloy
Pressure Rating - 200 PSI Maximum (Air only)
Force exerted is .9 times air pressure
Temperature Rating - From -20 F to +150 F (-25 C to +65 C)
http:// /pdf/catalogs/FL_FlatCylinders.pdf
Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder.
