Shinano kenshi sst-42D2121 stepper motor w/encoder,used

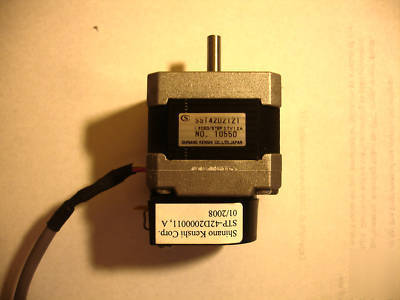

Qty. 1 Shinano Kenshi SST-42D2121 Stepper Motor w/US Digital E2-500-197-I Encoder - Used
Includes US Digital E2-200-197-I Encoder
* Quick, simple assembly and disassembly
* Rugged screw-together housing
* Accepts .010" axial shaft play
* Tracks from 0 to 100,000 cycles/sec
* 500 cycles per revolution (CPR)
* 2 channel quadrature TTL squarewave outputs
* Includes optional Index (3rd channel)
* - 40 to + 100 degrees C operating temperature
* Mounting compatibility with Agilent HEDS-5500
Encoder has 500 CPR (Cycles Per Revolution)
The E2 is easy to add to existing applications and only consists of four main components; base, cover, hub/code wheel and optical encoder module.
The E2 is normally designed for applications of 6 feet or less.
The base and cover are both constructed of rugged 20% glass filled polycarbonate. The cover is securely attached to the base with two 4-40 screws to provide a resilient package protecting the internal components.
The internal components consist of a shatterproof mylar disk mounted to a precision machined aluminum hub and an encoder module. The module consists of a highly collimated solid state light source and monolithic phased array sensor, which together provide a system extremely tolerant to mechanical misalignments.
For additional information go to:
http:// /xampp/docs/SST42D.pdf
http:// /xampp/docs/SKC%20Full-Line%20Catalog%20.pdf
http:// /New%20Site/New_pdfs/SKC/SKCnew.pdf
http:// /assets/general/74_e2_datasheet_3.pdf
