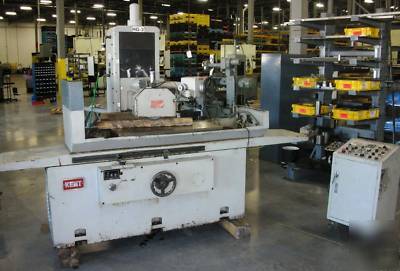

Kent kgs-410AHD 16â€X40†surface grinder 1983
(1) Used Kent Model KGS-410AHD 16 x40 Surface Grinder, New 1983
Working Surface of Table 15-3/4 x 39-3/4
Table Travel - Longitudinal 44.5"
Table Travel - Cross 17-11/16"
Crossfeed - Per Table Reversal 0.02" - 0.5"
Crossfeed - -Rapid Traverse 60 IPM
Maximum Distance Under New Wheel to Table 23"
Powered Incremental Downfeed 0.0002" - 0.0016"
Grinding Wheel Size 12" x 1.5" x 5"
Grinding Wheel Motor 5 HP 3/60
Approximate Overall Dimensions 120" LR x 84" FB x 84" H
15-3/4 x 39-3/4 Electro Magnetic Chuck w/Holdingfor WL-115C Chuck Control
Separate Electronic Control Console
