Omega rd-46A dual channel flatbed recorder

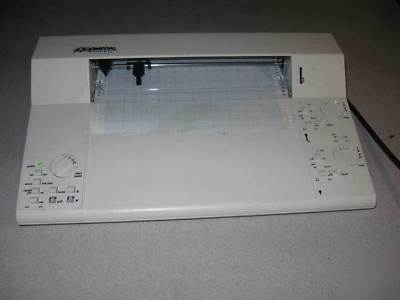

OMEGA RD-46A Dual Channel Flatbed Recorder
The RD46A dual channel flatbed recordes is the ideal instrument for use in research, development and production, as well as in service and education applications. Designed for ease of use, the recorder has an ergonomic shape which allows the user to easily write comments on the chart, even next to the pen.
The wide, 200 mm (8") chart is capable of recording measurements from 1 mV full scale to 20 V. Chart speeds from 0.1 mm/min to 20 mm/sec (1 mm = 0.03937") are available. The electric pen lift function will automatically lift the pens if the chart has not been advanced for 30 seconds; this will lengthen pen life, as well as keep the chart paper clean and easy to read.
The RD46A has a built-in HOME and GRID function. The home function is useful for comparative measurements, where the chart is rewound automatically to the same starting point. The grid function moves the pen to an exact grid line on the chart, which allows for easy repetitive measurements. As an option, pen offset compensation is available. This eliminates the recording offset caused by the distance between the two pens.
Here is a link to a to the manufacturer's website where you can get addtional info and order supplies for the recorder.
* 14 Input Ranges from 1 mV to 20 Vdc
* HOME Function Returns Pen to Plot Start
* GRID Function Aligns Pen to Paper Grid
* Zero Suppression from 100 to 500%
* Electric Pen Lift and Remote Control Options
* Pen Offset Compensation Optional
