New itt cannon plug p/n CA3106B48-5S large 3 inch plug

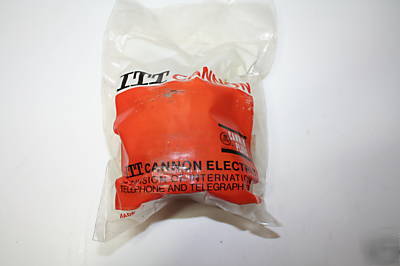

DESCRIPTION : ITT Cannon Plug P/N CA3106B48-5S Large 3 inch plug new in the package. NSN 5935-00-834-0191.
Below is all the information I can find on this:
ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
90 SINGLE MATING END 1ST CONTACT GROUPING
9 SINGLE MATING END 2ND CONTACT GROUPING
1 SINGLE MATING END 3RD CONTACT GROUPING
SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS
SILVER SINGLE MATING END ALL CONTACT GROUPINGS
COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
BACK SINGLE MATING END ALL CONTACT GROUPINGS
INTERNALLY THREADED COUPLING NUT
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS
700.0 SINGLE MATING END 2ND CONTACT GROUPING
700.0 SINGLE MATING END 1ST CONTACT GROUPING
700.0 SINGLE MATING END 3RD CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS
500.0 SINGLE MATING END 2ND CONTACT GROUPING
500.0 SINGLE MATING END 3RD CONTACT GROUPING
500.0 SINGLE MATING END 1ST CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS
41.0 SINGLE MATING END 2ND CONTACT GROUPING
73.0 SINGLE MATING END 3RD CONTACT GROUPING
22.0 SINGLE MATING END 1ST CONTACT GROUPING
NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
BACK SHELL AND COUPLING FACILITY
9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL
