> 16" swg 40" cc trueturn 1640 engine lathe, inch/metric,
16" swg 40" cc trueturn 1640 engine lathe, inch/metric,

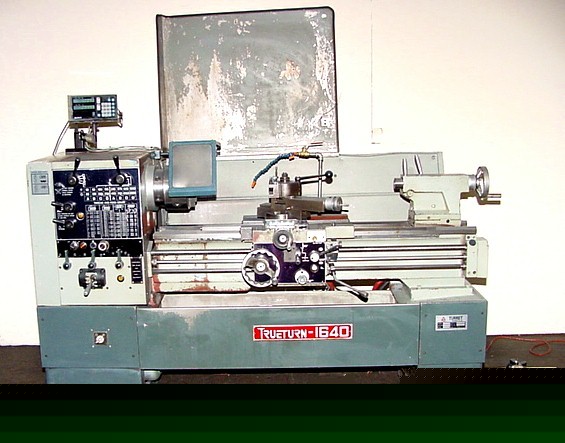

16" Swg 40" cc TrueTurn 1640 ENGINE LATHE, Inch/Metric,
16" Swing 40" Centers TrueTurn 1640 ENGINE LATHE, Inch/Metric,Gap,Sony DRO,3&4 JAW,Toolpost,Steady
REMOVABLE GAP BED ENGINE LATHE,
MODEL: 1640, S/N: 6494100 701, NEW: 1994
SWING OVER BED ......................... 16"
SWING OVER SADDLE ...................... 10.5"
SWING IN GAP ........................... 24"
DISTANCE BETWEEN CENTERS ............... 40"
HOLE THROUGH SPINDLE ................... 2.04"
SPINDLE NOSE, CAMLOCK, SIZE ............ D1-6"
SPINDLE SPEED RANGE(16) ................ 40 - 2,000 R.P.M.
LONGITUDINAL FEED RANGE ................ .002 - .067 IPR
CROSS FEED HALF OF LONGITUDINAL SETTING
INCH (45) ........................ 2 TO 72 T.P.I.
METRIC (39) ...................... .2 TO 14 MM
TAILSTOCK SPINDLE TAPER ................ #4MT
TAILSTOCK SPINDLE TRAVEL ............... 6"
APPROXIMATE FLOOR SPACE ................ 86" X 36" X 50"H
APPROXIMATE WEIGHT ..................... 3,000 LBS.
- SONY MAGNASCALE DIGITAL READOUT
- 10" PRATT BURNERD 4-JAW CHUCK
- QUICK CHANGE TOOLPOST WITH HOLDERS
- FOOT TREADLE OPERATED SPINDLE BRAKE
- 7.5 HORSE POWER MAIN DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE!
