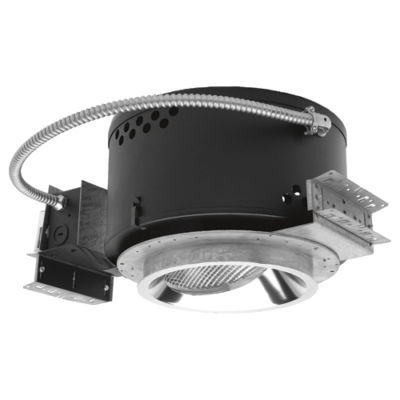

Prescolite CFTW832EB recessed architectural lighting
NEW!!! PRESCOLITE Recessed Architectural CFTW832EB Lighting! REFLECTOR ST812 INCLUDED!!!
8'' Spread Lens Wall Wash Downlight
for 26W, 32W, or 42W Triple Tube 4-Pin Lamp (not included)
120V, 208V, 240V, 277V, or 347V
* High quality glass prismatic spread lens for even light output
* Diecast aluminum plaster flange
* Electronic ballast with end of life protection and 120-277V universal voltage
* Self-trim (ST) low-iridescence reflectors standard
The CFTW832EB offers a horizontally lamped
lensed wall wash fixture that provides superior
brightness and glare control. The concave
lens provides uniform distribution of light on
vertical wall surfaces. The multi-watt, multi-volt
ballast provides the ability to change wattages
by simply changing the lamp. This luminaire
is ideal for a wide variety of medium to high
ceiling applications including commercial,
20-gauge cold rolled steel platform. Prewired
J-box with snap-on cover for easy access.
Diecast aluminum plaster flange.
High purity aluminum Alzak iridescence suppressed
reflector. Self-trim standard. Painted
white self-trim and American Matte (MFC) also
available. High quality glass prismatic spread
lens provides uniform vertical distribution.
One (1) 26W, 32W, 42W compact fluorescent
Class P electronic multi-volt (120V
through 277V) ballast. HPF and EOL protection
standard. Accessible from below ceiling.
347V available (specify wattage when ordering).
One (1) injection molded socket. Adjusts to
three positions, accommodating various lamp
sizes and ensuring proper lamp position.
Universal adjustable mounting brackets accommodate
1/2" or 3/4" lathing channel or
/2" EMT (by others), or Prescolite 24" bar
UL, CSA listed for damp locations
