Nema 23 belt reducer 2:1 3:1 4:1 5:1 stepper servo cnc

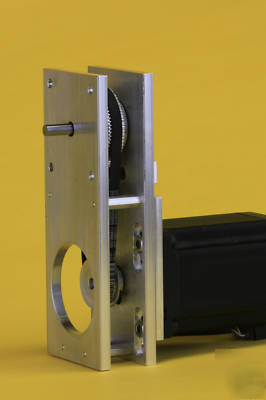

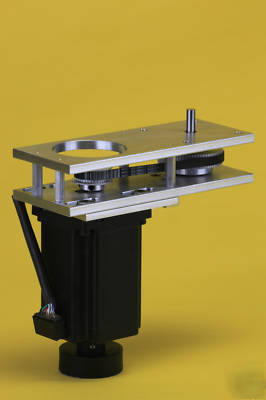

Belt Reduction drive for Nema 23 motor platform. Bolts in place of your existing motor, allowing you to gear down for Stepper to Servo motor conversion, increase torque or increase step resolution. Installs in minutes.
1/4" Output shaft supported by two ABEC 5 bearings.

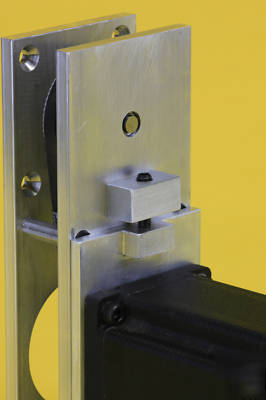

Belt tension is adjustable by screw, allowing easy and predictable tensioning
Please contact me if you are interested in multiple gear sets. Ratios can be changed in a matter of minutes
You must specify which ratio you want at time of order.
Stepper motor shown in pictures is not included
