White rodgers 1F82-54 dig.heatpump thermostat free ship

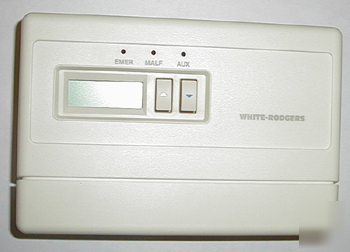

White Rodgers 1F82-54 Digital Heat Pump Thermostat
Description: HEAT PUMP THERMOSTAT
This White-Rodgers 5-Day/2-Day Digital Heat Pump Thermostat uses the technology of a solid-state microcomputer to provide precise time/temperature control. This thermostat offers you the flexibility to design heating and cooling programs that fit your needs.
* Separate 5-day (weekday) and 2-day (weekend) programming with four separate time/temperature periods per program
* Simultaneous heat and cool program storage
* Preprogrammed temperature control
* LCD continuously displays set point, and alternately displays time and room temperature
* Temperature override until next program period
* Manual program override (HOLD temperature)
* Temperature range 45 to 90 F
* Eight terminals for single or two-transformer systems
* O/B terminal for heat pump systems
* Armchair Programming Capability
Electrical Rating: 20 to 30 VAC 50/60 Hz. or D.C., 0.05 to 1.5 Amps (Load per terminal), 1.5 Amps Maximum Total Load (All terminals combined)
Setpoint Temperature Range: 45 F to 90 F (7 C to 32 C)
Operating Ambient Temperature Range: 32 F to 105 F
Operating Humidity Range: 0 to 90% RH (non-condensing)
