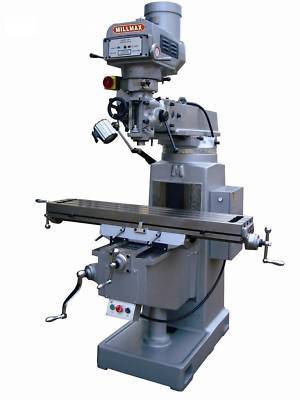

Vertical knee mill milling machine 3HP vari speed 10X50
M3 Series, R8 Spindle, Variable Speed Head, 10x50" Table, Special Promotion Package

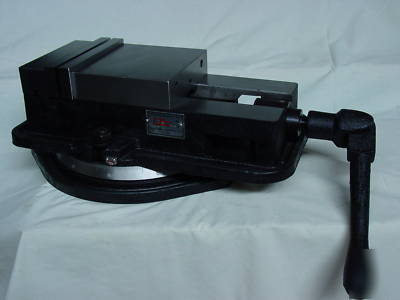

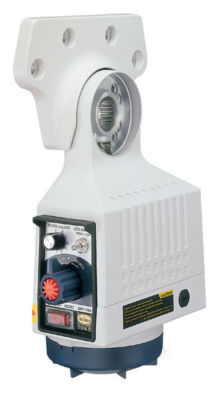

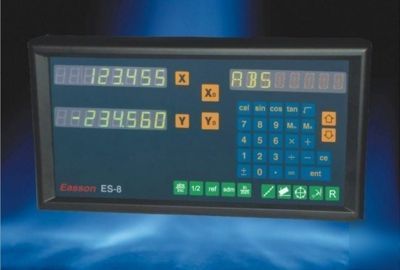

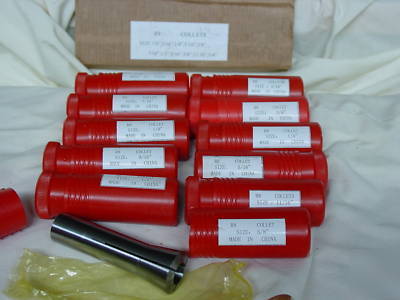

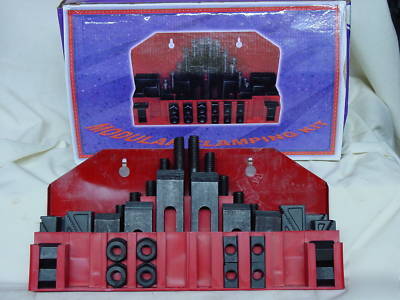

Limited Time Promotional Package includes ABEC7 Super Precision Spindle Bearings, Coolant Pump System With Chip Pan, 2-Axis Easson DRO With Collet Rack, X-Axis Power Feed, 8Pc R8 Collet Set, 52Pc Clamping Kit, 6" Precision Vise With Removeable Swivel Base, Halogen Work Lamp, Accessory Installation and Indididual Packing Costs Included.
FREE FREIGHT TO THE LOWER 48!!
Axis Travels (inch): X-28.74" Y-15.75" Knee13.78" Quill-5" RAM-21.65"
Machine Dimensions 59"x66"x85"
Throat-Z (Spindle to Table) 2.56"min-18.31"max
Throat-Y (Table Center to Column) 8.46"min-23.23max
Variable Speed Spindle Head 60-4200 rpm
3 Hp 3-Phase 220/440VAC Spindle Motors
Hard Chromed Powered Quill - Up and Down - Feed Select: 0.0015, 0.003, 0.006 in/rev
R8 Spindle Taper (NT30 and NT40 Optional) - 100% Factory Test Data Provided
Head Rotation (Deg) 90 left/right, 0-45 front/back, 360 Orbital
PBC-2 Phosphor Bronze Backlash Adjustable Lead Screw Nuts
Turcite-B X&Y Saddle Ways - Precision Hand Scraping Throughout
Control Box with 110/220VAC Outlets - On/Off/E-Stop Switch Box and Indicator Light
Manual 1-Shot Lubrication System - Automatic Optional
7/16"-20 Draw Bar, Tool Box With Operation Manual And Test Data
