> Haco-atlantic syncromaster 10' x 135TON cnc press brake
Haco-atlantic syncromaster 10' x 135TON cnc press brake

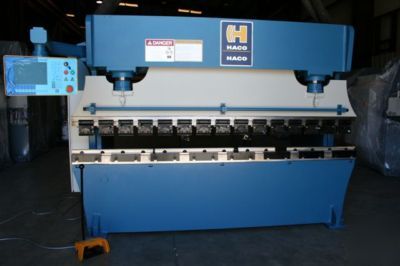

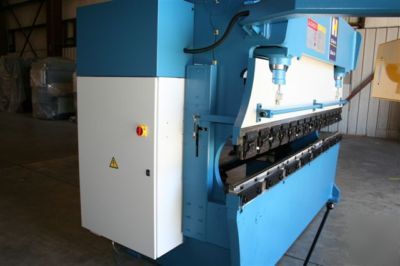

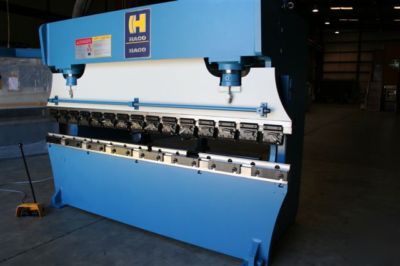

FACTORY-REUILT Haco-Atlantic Syncromaster 3-Axis CNC Press Brake
Model: PPES 135-10-8, Mfg: 1994
Brand new ATS 590 Graphics 2D CNC Controller retrofitted. Amada top tool holders with manual quick clampingSystem manual bottom clamping with holdersResealed cylinders.New suction filter.Fresh full oil tankFresh paintManual and service tools3 Months extended warranty on parts. No labor included
This machine comes with the ATS 590 three (3) axis control. ( Y1-Y2 & X)
The ATS 590 is an easy to program, low cost control for metal fabricators in need of a simple but
efficient CNC machine. Important: This ATS590 control is programmable in angle, depth and pressure! When ordering
supplier be sure to order Air Bending Tooling ! ( Cut at 85 Degrees)
All HACO-ATLANTIC "SYNCHROMASTER" pressbrakes are built to conform to ANSI B11.3 "American
National Standard for machine tools - power press brakes - safety requirements for construction, care, and use". The
purchaser shall be responsible for the proper installation and continued use of point of operation guards and/or
awareness barriers to assure required operator safety. Haco- Atlantic, Inc. recommends to check out your local
safety regulations by OSHA. Haco- Atlantic, Inc. offers optional safety equipment such as two-hand control and
Flush floor mount. No pit or special foundation required.

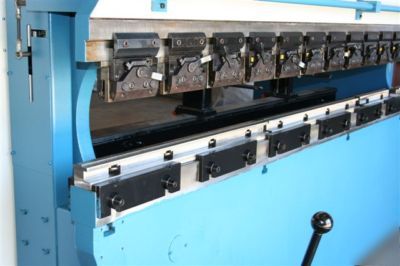

Precision bed and ram. PPES press brakes use single, deep-sectioned plates for the bed and ram. The ram
is fitted with more punch clamping plates and bolts than is commonly found on other machines. This
enables the operator to easily and securely clamp small tooling segments if he is not using one long
punch. The bed is an integral part of the machine frame and is machined in one set up in conjunction with
and frame for guaranteed accuracy.
LOCATION: MACHINE IS LOCATED AT HACO FACTORY / HOUSTON, TX
WE CAN HELP WITH TRUCKING QUOTES - CONTACT US FOR FREIGHT QUOTE.
