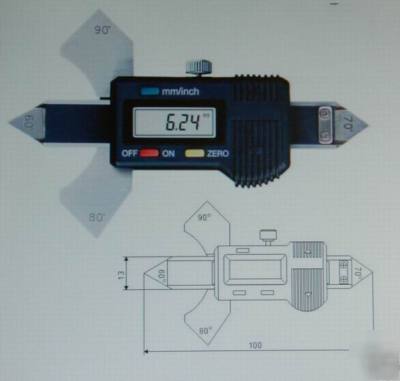

Digital welding gages weld test ulnar & free shipping
Facilitate measurement of welding thickness
1. Zero setting at any position;
2. Metric/Inch system conversion at any position;
3. The digital welding gage is equipped with an output port.
Data can be input into a computer or a special printer via special connecting cable;
The working way of the interface: synchronous serialization.
Data: binary code,24bits. each datum will be transferred twice.
The cycle is 300ms (20ms in fast reading mode ).
Four wires (from left or right ):Negative power(-),clock Pulse CP, Data D, positive power(+).
Pulse Range of Data: 0 Levels < or = 0.2V,level 1 > or =1.3V.
Clock pulse CP: 90 KHz, effective for high electrical level.
