Mercury membrano vacuum membrane press duo 49, 230V
Mercury Membrano Vacuum Membrane Press Duo 49, 230V!

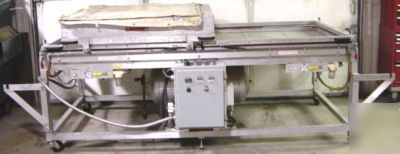

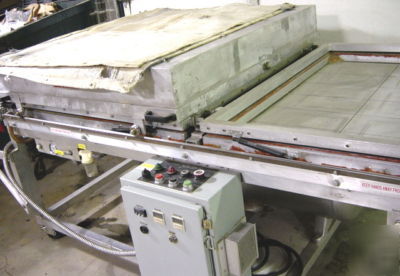

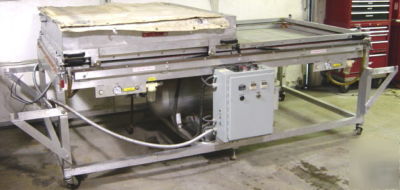

* Mercury vacuum press thermal foil machine combination
* Unit has 2 tables 49 " x 49" linked together with a usable platen dimension of 46" x 46" when laminating top and edge profiles
* Maximum material height 2.5 "

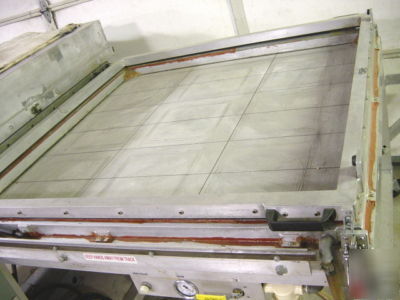

* Part Lay-Up work table is composed of 3/8 " cast and ground aluminum with bottom vacuum platens.
* 3HP, 220V, 3PH vacuum pump with speed control

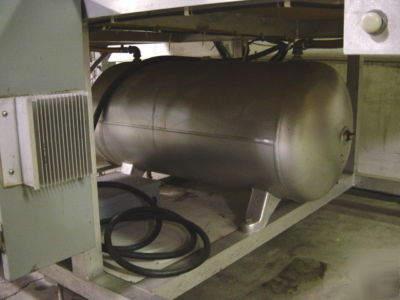

* Approx. 10 Gallon surge tank
* Bulb heating unit is a 48 " x 48 " overhead electrical heating enclosure that slides back and forth over the layup area with a vacuum cycle that switches back and forth also, after the completed cycle.
* Heat Enclosure with black phase infrared heating elements with insulated top, 160-280 degree temperature range.

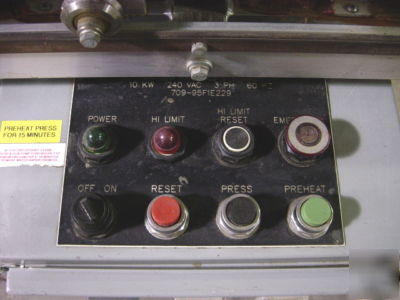

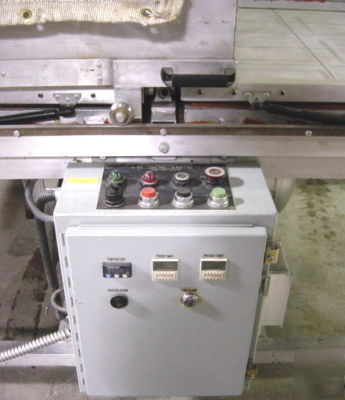

* Digital Temperature controller with LED readout.
* Timed press cycle with audible alarm
* Average cycle time on 12-mil thick PVC laminate 3-4 minutes. When one section of the press is in a cycle this allows the other side free for cooling and unloading/loading of parts.
Machine can be loaded at no charge.
Framing or crating will incur additional charges, if needed Please Email or call 1-(***)-793-4494 if interested in this machine.
Recently updated showroom! Updated showroom features the following new equipment: A Kentwood 5 Head Moulder and Kentwood Profile Grinder, 2 Oliver rip saws, an Oliver planer, an Oliver band saw, and an Oliver 12" Jointer. A New Lobo 37 1 Head sander and Lobo 20 inch economical planer are also on display. Additional late model and popular used machinery will also be in the showroom.
Many other new and used machines are stored in our warehouse and can be viewed.
Minimum $125.00 Crating Fee, if required.
Freight, rigging, and installation are not included unless otherwise specified, but arrangements can be made at an additional
