> Ic chips: AD8009ARZ 1GHZ 5500 v/µs low distortion amp

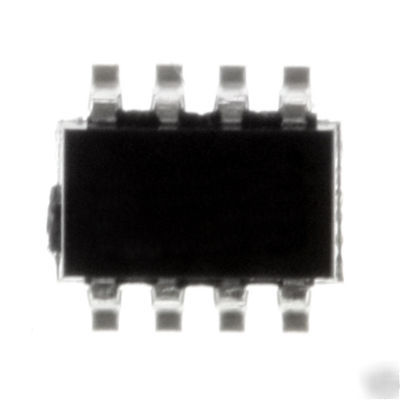

Ic chips: AD8009ARZ 1GHZ 5500 v/µs low distortion amp
5,500 V/ s Slew Rate, 4 V Step, G = +2
545 ps Rise Time, 2 V Step, G = +2
Small Signal Bandwidth ( 3 dB)
Settling Time 10 ns to 0.1%, 2 V Step, G = +2
- Low Distortion over Wide Bandwidth
66 dBc @ 20 MHz, Second Harmonic
75 dBc @ 20 MHz, Third Harmonic
Gain Flatness 0.1 dB to 75 MHz
0.01% Differential Gain Error, RL = 150 O
0.01 Differential Phase Error, RL = 150 O
10 dBm with 38 dBc SFDR @ 70 MHz, G = +10
- High Resolution Video Graphics
