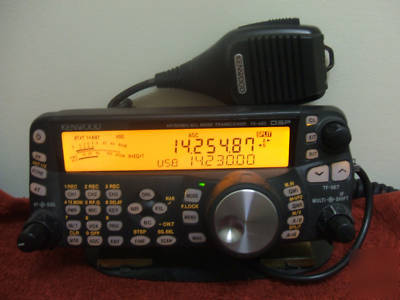

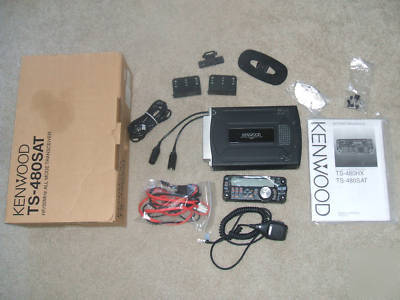

Kenwood ts-480SAT xceiver with voice module installed
0.5 to 30 MHz, 50 to 54 MHz. (to specifications)
1.81-2, 3.5-3.8, 7-7.1, 10.1-10.15, 14-14.35, 18.068-18168, 21-21.45,24.89-24.99, 28-29.7 and 50-54 MHz.
13.8 V DC 15% and 13.8 V DC 15%
Dimensions, projections not included (W x H x D)
Main Unit 7.1 x 2.4 x 10.2 inches (179 x 61 x 258 mm)
Panel 7.1 x 3 x 1.5 inches (180 x 75 x 37 mm)
A1A (CW), J3E (SSB), A3E (AM), F3E (FM), F1D (FSK)
8.1 lbs. (3.7 kg) Main Unit and Panel
Triple conversion superheterodyne
1st IF, 2nd IF, 3rd IF 73.095 MHz, 10.695 MHz, 455 kHz [FM Only]
More than 2 Watts 8 ohms at 10% distortion
Sensitivity SSB/CW/FSK (S/N 10 dB):
Less than 4 V (500 kHz ~ 1.705 MHz)
Less than 0.2 V (1.705 MHz ~ 24.5 MHz)
Less than 0.13 V (24.5 MHz ~ 30 MHz)
Less than 0.13 V (50 ~ 54 MHz)
Less than 31.6 V (500 kHz ~ 1.705 MHz)
Less than 2 V (1.705 ~ 24.5 MHz)
Less than 1.3 V (24.5 ~ 30 MHz)
Less than 0.22 V (28 ~ 30 MHz)
Less than 0.22 V (50 ~ 54 MHz)
Antenna Tuner Range TS-480SAT:
16.7 ohms ~ 150 ohms (1.9-50 MHz)
The Kenwood VGS-1 Voice Guide and storage unit can serve two important roles: vocal confirmation of frequency, key operation, etc. and recording/playback of messages received by the transceiver. A total of 90 seconds (3 x 30 seconds) can be recorded and stored in Flash ROM for playback and transmission. Additionally, a convenient constant record function means you can always play-back the last 30 seconds of receptions for confirmation.
