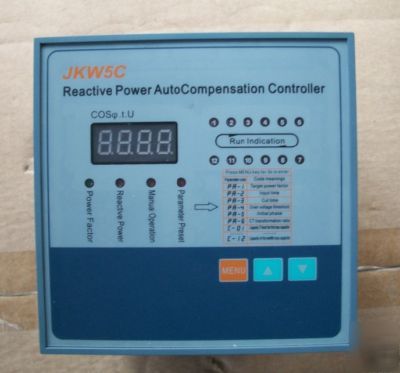

Intelligent reactive power compensation controller
Intelligent Automatic Compensation Controller for Wattless Power
TECHNICAL DATA: 1.Setting values and variable range of the compensators Power factor Cos value: 0.70-0.98 continuous digital setting Over-voltage protection value: 400-500V 1-step continuous digital setting Closing or opening delay of every channel: 1-200s continuous digital setting Assured sampling current value of compensators when auto-closed or auto-opened: Lower limit:150mA Upper limit:5A 2.Basic parameters: Rated voltage: U hc Phase,50Hz 380V 10%AC A phase sampling current I: 0-5A AC Capacity of contact output: 220V x 8A or 380V x 5A AC Dielectric strengh: 3000V AC Working Style: Continuous working style Weight: 1KGQQ-2.jpg picture by worldwidewait22222.jpg picture by worldwidewait3333333.jpg picture by worldwidewaitOne year factory warranty!
