Kramer tp-9 video audio twisted pair transmitter ir
Manufacturer: Kramer Electronics Model/Part #: TP-9

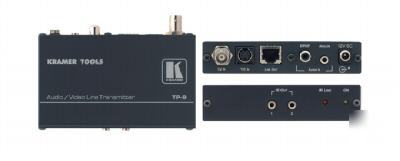

Kramer TP-9 Video Audio Twisted Pair Transmitter and IR Repeater
The TP-9 and TP-10 are a twisted pair transmitter and receiver set for composite or s-Video (Y/C) signals and unbalanced analog stereo or S/PDIF digital audio signals. The TP-9 transmitter converts the video and audio to a twisted pair signal and the TP-10 converts the twisted pair signal back into video & audio signals.
Audio - S/PDIF or unbalanced analog
IR Repeater - 2 IR emitter Outputs (TP-9) & 1 sensor (TP-10)
Twisted Pair Input/Outputs - RJ-45 connector
System Range - up to 100 meters (320 )
Cable - UTP (unshielded twisted pair) such as CAT 5.
Level (Gain) & EQ (Peaking) Controls - TP-10
